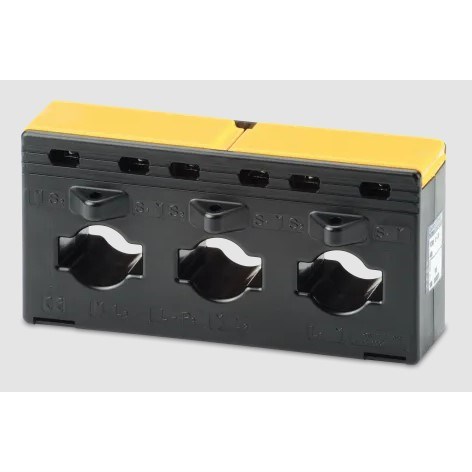

Socomec 192T3450 Bar or Cable Through Current Transformer TCB 322-30 (3phase CT) (3) 500/5 500A 50/60Hz Class 1

Product Code: 192T3450

  • Solid-core design for durability
  • 500 A rated current capacity
  • Screw connection type
  • Compliant with IEC standards
  • Accuracy Class 1 for precision
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Aperture (mm) 26 (x3)
Dimensions (mm) 150 X 75 X 37
Included DIN rail adapter
Rated Secondary Current - I?? (A) 5
Rated Primary Current - I?? (A) 500
Secondary Connection Screw connection
Product Type Bar or Cable Through Current Transformer
Brand Socomec
Accuracy 1
Accuracy Class Class 1
Aperture 22 mm
Bore Size 22 mm
Connection Type Screw
CT Ratio (3) 500/5
Function Current measurement
Length 30 mm
Model TCB 322-30 (3 PH CT)
Rated Current 500 A
Rated Frequency 50/60 Hz
Rated Power 5 VA
Standards and Approvals IEC
