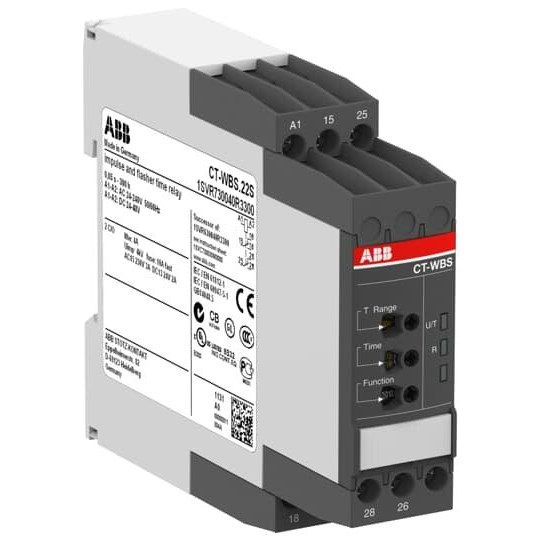

ABB CT-WBS.22S Time Relay 2CO SPDT Contact 24-240VAC 24-48VDC 4A Screw Terminal

Product Code: CT-WBS.22S

Versatile voltage range: 24-240 VAC, 24-48 VDC
High durability: 100k electrical operations
Compact size: Width 22.5 mm, Height 85.6 mm
Flexible mounting on DIN rail (35x15/7.5 mm)
Wide operating time: 0.05 s to 300 hr

Specifications

Product Type	Time Relay
Brand	ABB
Contact Configuration	2CO SPDT
Degree of Pollution	IP3
Degree of Protection	IP20, IP50
Electrical Durability	100000 Operations
Height	85.6 mm
Mechanical Durability	30000000 Operations
Mounting Type	35 x 15 mm DIN Rail, 35 x 7.5 mm DIN Rail
Operating Time	0.05 s-300 hr
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	24-240 VAC, 24-48 VDC
Standards and Approvals	CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Terminal Type	Screw
Weight	0.123 kg
Width	22.5 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
