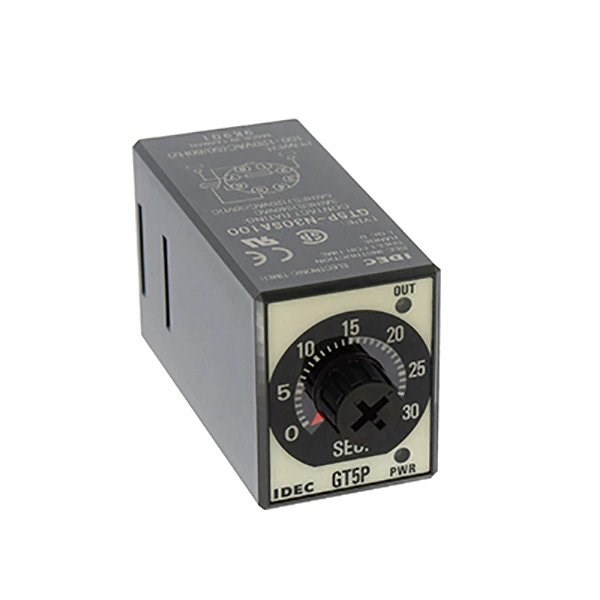

IDEC GT5P-N60SA100 ON Delay Timers 100-120VAC

Product Code: GT5P-N60SA100

  • Operates at 100-120 VAC
  • Compact size: 29x36x81.5 mm
  • Long electrical life: 100,000 ops
  • CE, CSA, UL recognized
  • Handles humidity: 45-85%
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 29W x 36H x 81.5D
Operational Temperature Range (°C) -10 to 50
Power Consumption (VA) 2.9
Weight (g) 54
Minimum Mechanical Life 20,000,000
Operating Humidity 35 to 85%
Minimum Electrical Life 100000
Resistance to Shock (m/s²) 98
Voltage Range AC (V) 100 to 120
Product Type ON Delay Timers
Brand IDEC
Depth 81.5 mm
Electrical Life 100000 Operations
Height 36 mm
Humidity 45-85%
Mechanical Life 20000000 Operations
Operational Temperature -10 to 50 deg C
Rated Power 2.9 VA
Rated Voltage 100-120 VAC
Shock Resistance 98 ms
Standards and Approvals CE, CSA, UL Recognized File E55996
Weight 54 g
Width 29 mm

Description

The IDEC TIMER GT5P-N60SA100 is a versatile timing solution with SPDT 5A contacts and an 8-pin octal base. It offers nine selectable time ranges and boasts a repeat error of ±0.2% maximum, ensuring precise operation. Users can adjust control settings manually or with a screwdriver for convenience. The timer features LED indicators for power status and timing completion, and it is compatible with the same sockets and hold down clips as IDEC's RR2P 8-pin relay, facilitating easy integration into existing setups.
