Specifications

Pollution Degree	3
Rated Control Supply Voltage AC/DC (V)	24 ... 240 V AC/DC
Tightening Torque (Nm)	0.6 ... 0.8
Outputs	2 c/o (SPDT) contacts
Rated Operational Current AC-12 230V (A)	4
Rated Operational Current AC-15 230V (A)	4
Rated Operational Current DC-12 24V (A)	3
Rated Operational Current DC-13 24V (A)	2
Time Ranges	0.05 s ... 300 h
Standards	CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 508
Minimum Switching Capacity (mA)	100
Wire Stripping Length (mm)	8
Minimum Switching Capacity (V)	12

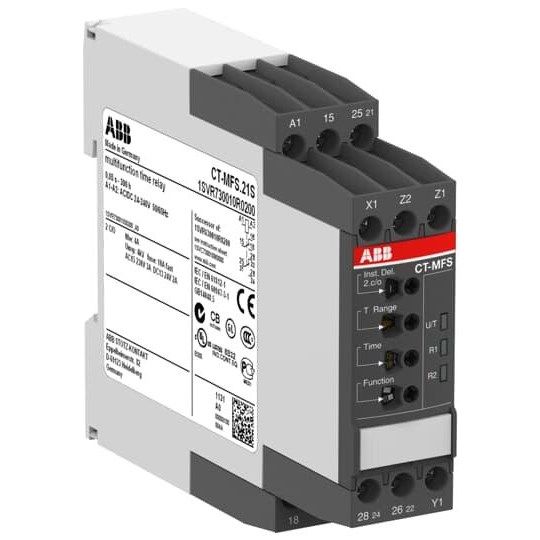

Product Type	Time Relay
Brand	ABB
Contact Configuration	2CO SPDT
Degree of Pollution	IP3
Degree of Protection	IP20, IP50
Electrical Durability	100000 Operations
Function	Remote Potentiometer Connection
Height	85.6 mm
Mechanical Durability	30000000 Operations
Mounting Type	35 x 7.5 mm DIN Rail
Operating Time	0.05 s-300 hr
Overvoltage Category	III
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Voltage	24-240 VAC/VDC
Standards and Approvals	CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Terminal Type	Screw
Weight	0.145 kg
Width	22.5 mm
