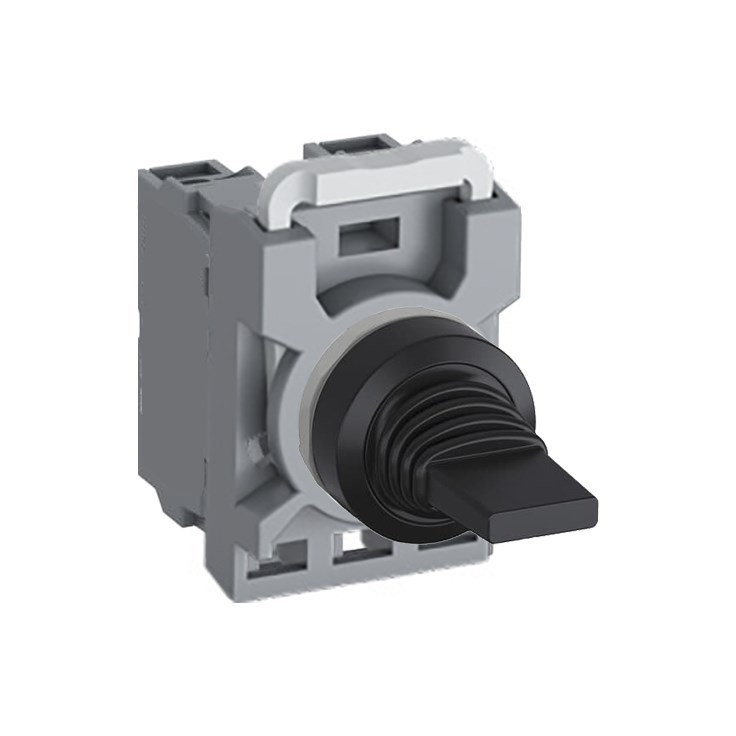

ABB MPT3O02 Toggle Switch Kit 3Position A B C Momentary 2NC

Product Code: MPT3O02

  • Operates at 100/110 VAC, 50/60 Hz
  • Built-in yellow LED illumination
  • Works in -20 to 55°C operational range
  • IP20/IP65 rated for pollution resistance
  • M3.5 screw terminal connection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
No. of Positions 3
Maintained Positions Not Applicable
Spring Returned from Position A and C to B
Bezel Material Plastic
Product Type Toggle Switch Kit
Brand ABB
Series YW
Ambient Temperature -45 to 80 deg C
Cover Colour Yellow
Degree of Pollution IP20, IP65
Function Momentary
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Yellow
Lamp Type Built-In LED
Mounting Hole Diameter 29.8 mm
Operational Temperature -20 to 55 deg C
Rated Frequency 50/60 Hz
Rated Voltage 100/110 VAC
Shock Resistance 100 ms
Terminal Type M3.5 Screw

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
