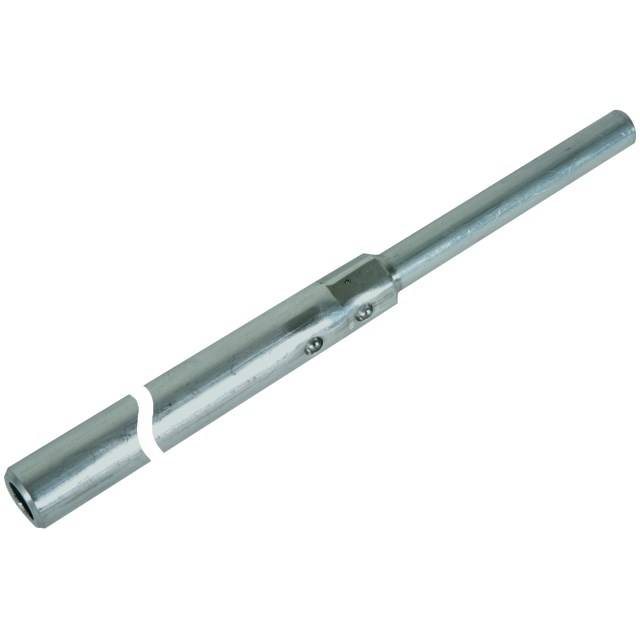

DEHN 103480 Air-Termination Rod 16mm Dia 5000mm L Aluminium Magnesium Silicon Alloy

Product Code: 103480

  • 5m length for extensive coverage
  • Complies with EN 62561-2 standards
  • Lightweight at only 1.3 kg
  • Made from Al-Mg-Si alloy
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Diameter (mm) 10 & 16
Dimensions (mm) 2W x 500H x 2D
Length (mm) 5000
Weight (kg) 1.3
Surface Protection Untreated
Length of Air-Termination Rod (mm) 1000
Pipe Wall Thickness (mm) 2.5
Type Air Termination Rods
Product Type Air-Termination Rod
Brand DEHN
Depth 2 mm
Finish Untreated
Height 500 mm
Length 5000 mm
Material Aluminium, Magnesium Silicon Alloy
Model Interception rod tapered
Standards and Approvals EN 62561-2
Weight 1.3 kg
Width 2 mm
