Specifications

Dimensions (mm)	45W x 78H x 102D
Operational Temperature Range (°C)	0 to 55
Power Loss (W)	2
Rated Control Supply Voltage DC (V)	24
Rated Operational Current AC-15 240V (A)	1.5
Rated Operational Voltage AC/DC (V)	Auxiliary Circuit: 12 - 250V
Ambient Temperature Range (°C)	-25 to 70
Tightening Torque (Nm)	Auxiliary Contact: 0.22Nm, Control Circuit: 0.6 - 0.8Nm
Suitable For	UMC100-FBP.0
Weight (kg)	0.22
Sub-Function	0 - 10V
Rated Operational Current DC-13 24V (A)	1
Rated Operational Current DC-13 250V (A)	0.11
Wire Stripping Length (mm)	7
Recommended Screwdriver	Pozidriv 1
Product Type	I/O Module
Brand	ABB
Ambient Temperature	-25 to 70 deg C
Degree of Protection	IP20
Depth	102 mm
Height	78 mm
Operational Temperature	0 to 55 deg C
Power Loss	2 W
Rated Current	1 A
Rated Voltage	24 VDC
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-5-1, IEC/EN 61131-2, UL 508
Suitable For Use With	UMC100-FBP.0
Terminal Type	Screw
Weight	0.22 kg
Width	45 mm
Wire Stripping Length	7 mm

Description

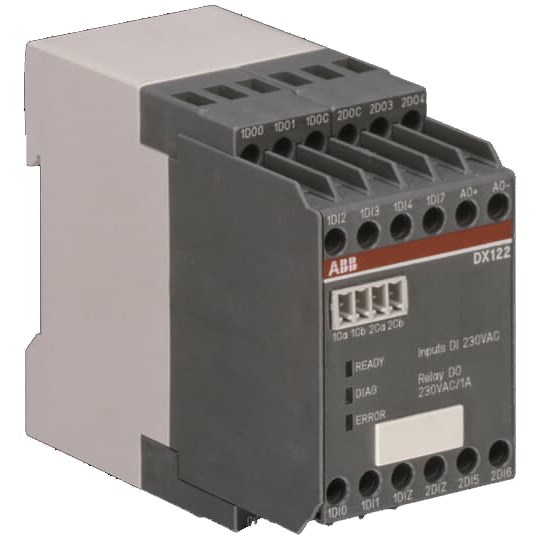

DX122 IO-Module for UMC100, 8 DI 110-230 V AC, 4 DO, 1AO, Supply 24 V DC. One digital extension module can be connected at the same time.
