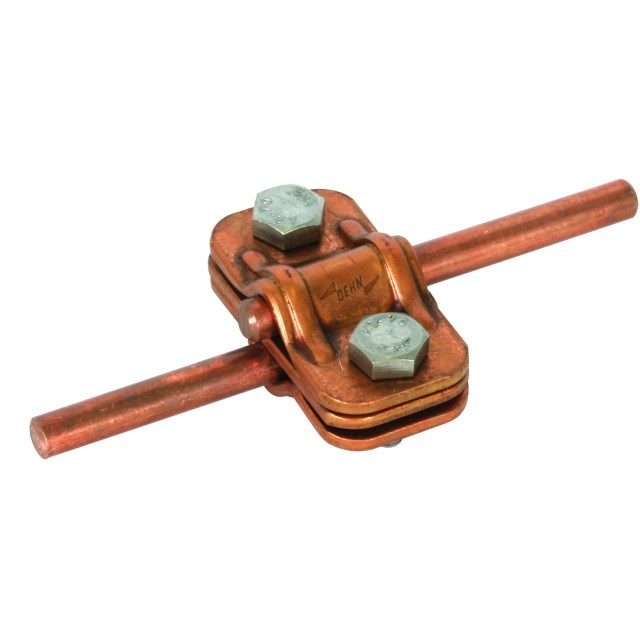

DEHN 459127 UNI Disconnecting Clamp W/Intermediate Plate 8-10mm M8 x 20mm Screw Copper

Product Code: 459127

  • M8 x 20 mm screw connection
  • Copper material, untreated finish
  • Clamping range: 8-10 mm
  • Lightning current capacity: 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 58W x 30D
Reference No. 459127
Thickness (mm) 3
Suitable For For connecting down conductors with earth entries
Weight (kg) 0.152
Class (Lightning Current Carrying Capability) (kA) 100
Clamping Range (mm) 8-10/8-10
Weight (g) 152
Surface Protection Untreated
Gross Weight (g) 154.3
Conductor Diameter (mm) 8 - 10
Clamping Range Rd/Rd (mm) 8 - 10 / 8 - 10
Distance Between Screws (mm) 40
Product Type UNI Disconnecting Clamp With Intermediate Plate
Brand DEHN
Clamping Range 8-10 mm
Connection Type M8 x 20 mm Screw
Connector Type UNI Disconnecting clamps
Depth 30 mm
Finish Untreated
Lightning Current Carrying Capability 100 kA
Material Copper
Screw Size M8
Standards and Approvals EN 62561-1
Thickness 3 mm
Weight 152 g
Width 58 mm
