Specifications

Ambient Temperature Range (°C)	–25 - +55
Dimensions (mm)	40(W) x164(H) x74(D)
Reference No.	774130
Suitable For	Earthing
Weight (kg)	0.780
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	19 - 120
Clamping Range (mm)	30
Maximum Output Short-circuit Current (A)	33503 (0.5s), 23700 (1s)

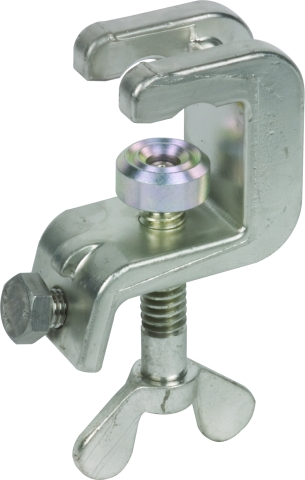

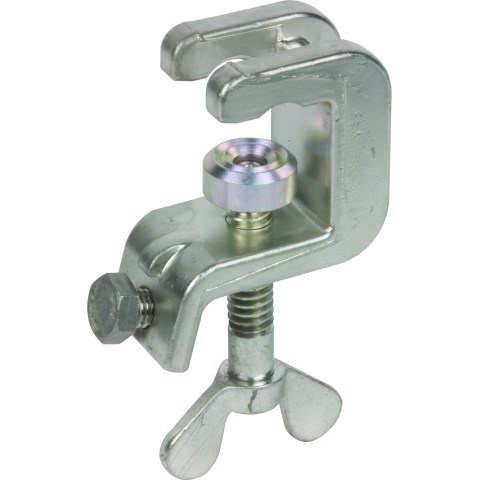

Product Type	Universal Earthing Clamp With Wing Screw
Brand	DEHN
Clamping Range	30 mm
Ambient Temperature	-25 to 55 deg C
Connection Type	25/30 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	74 mm
Height	164 mm
Material	Copper Alloy
Rated Current	33503 A, 23700 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Weight	0.78 kg
Width	40 mm
