Specifications

Cable Cross Section (mm²)	0.2 to 2.1
Operational Temperature Range (°C)	-15 to +60
Rated Frequency (Hz)	50/60, On/Off status for VFD outputs at 12-115
Type	Solid-Core
Torque (Nm)	0.4-0.5 (Terminal Block)
Amperage Range (A)	1 to 135 (@ 50/60 Hz only)
Trip Point	1.0 A or less (Min)
Class of Insulation	600 Vac RMS (UL)

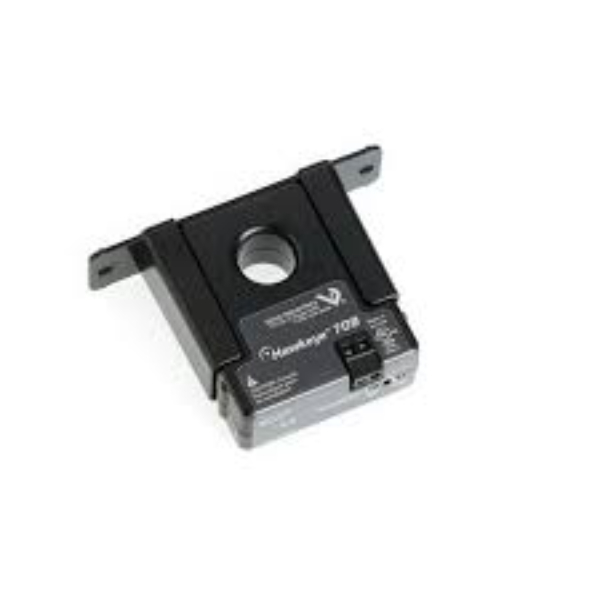

Product Type	Solid Core Current Transducer
Brand	VERIS
Series	HX08
Application	Building Automation Systems
Cable Cross Section	0.2-2.1 sq-mm
Operational Temperature	-15 to 60 deg C
Rated Current	1-135 A
Rated Frequency	50/60 Hz
Standards and Approvals	UL
Tightening Torque	0.4-0.5 N-m
