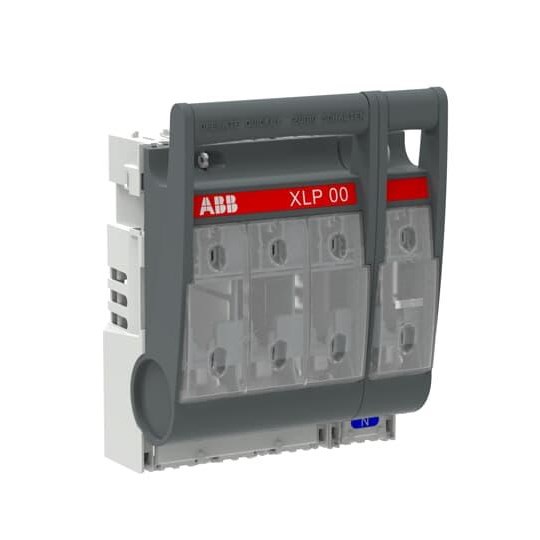

ABB XLP00-4P Disconnects Fuse 4-P 160A 500VAC Lug Terminal IP30 For: EV008979

Product Code: XLP00-4P

  • 160 A fuse disconnector with 4 poles
  • Supports up to 500 VAC and 50 kA
  • Compact size: 145x88x185 mm
  • IP30 protection for safe use
  • Front side control element
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Operational Voltage AC (V) 500
No. of Poles 4
Rated Conditional Short-Circuit Current - Inc (kA) 50
Rated Current (A) 160
Rated Uninterrupted Current - Iu (A) 160
Rated Voltage AC (V) 500
Suitable For EV008979
Type Main Switch
Main Circuit Electrical Connection Bolt Connection
Position of Control Element Front Side
Product Type Disconnects Fuse
Brand ABB
Control Element Position Front Side
Degree of Protection IP30
Depth 185 mm
Electrical Connection Bolt
Height 88 mm
Mounting Type Busbar
Number of Poles 4
Power Loss 3.5 W
Rated Current 160 A
Rated Short Circuit Current 50 kA
Rated Voltage 500 VAC
Suitable For Use With EV008979
Terminal Type Lug
Width 145 mm

Description

XLP00,4-pole,160A, without clamps or bolts
