Specifications

No. of Poles	1
Rated Conditional Short-Circuit Current - Inc (kA)	50
Rated Current (A)	400
Rated Uninterrupted Current - Iu (A)	315
Rated Voltage DC (V)	220
Rated Voltage AC (V)	500 - 690
Suitable For	NH2
Maximum Operational Voltage AC (V)	690
Type	Main Switch
Main Circuit Electrical Connection	Bolt Connection
Position of Control Element	Front Side
Product Type	Disconnects Fuse
Brand	ABB
Control Element Position	Front Side
Degree of Protection	IP30
Depth	289 mm
Electrical Connection	Bolt
Height	129 mm
Mounting Type	Busbar
Number of Poles	1
Power Loss	13 W
Rated Current	400 A
Rated Short Circuit Current	50 kA
Rated Voltage	500-690 VAC
Suitable For Use With	NH2 Base
Terminal Type	Lug
Width	80 mm

Description

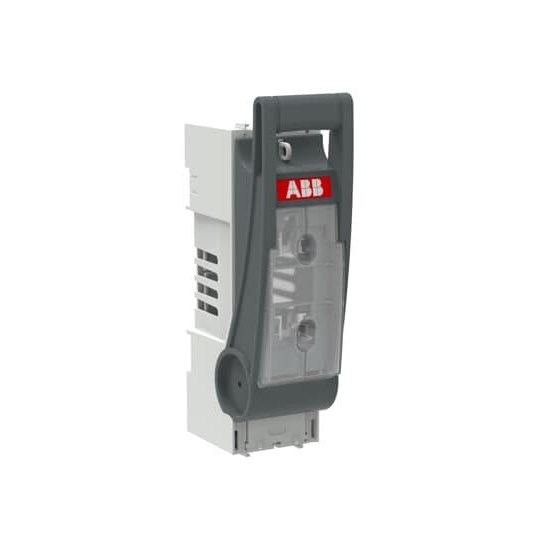

XLP2,1-pole,400A, without clamps or bolts
