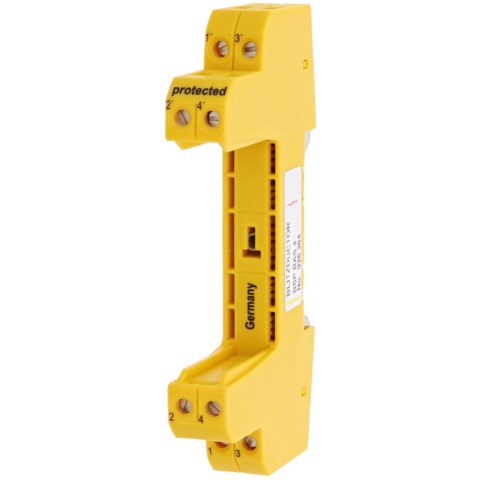

DEHN BSPBAS4 Yellow Line Base 4-P Screw 35mm DIN Rail Mount 12mm W 50mm D 90mm H Polyamide Yellow IP20

Product Code: BSPBAS4

  • Screw connection for secure installation
  • Fits 35 mm DIN Rail mounting systems
  • Compact size: 12mm W x 90mm H x 50mm D
  • Operates in extreme temps: -40 to 80°C
  • Compliant with UL 497B, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 4
Operational Temperature Range (°C) -40 to 80
Reference No. 926304
Suitable For Pluggable DIN Rail Mounted
Weight (kg) 0.045
Enclosure Material Polyamide PA 6.6
Dimensions (mm) 12W x 90H x 50D
Accessory Type Base
Mounting Method DIN rail (top hat rail) 35 mm
Product Type Yellow Line Base
Brand DEHN
Colour Yellow
Connection Type Screw
Cross Section 0.08-4 sq-mm Solid, 0.08-2.5 sq-mm Flexible
Degree of Protection IP20
Depth 50 mm
Height 90 mm
Material Polyamide
Mounting Type 35 mm DIN Rail
Number of Poles 4
Operational Temperature -40 to 80 deg C
Standards and Approvals UL 497B, CSA
Tightening Torque 0.4 N-m
Weight 0.045 kg
Width 12 mm
