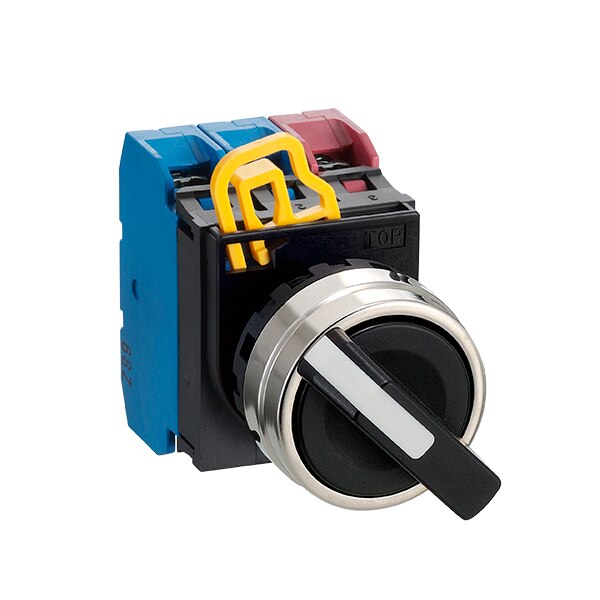

IDEC YW4S-3E20 Selector Switch 3Position 2NO Left Right Maintained Round Metal M3.5 Screw Terminal 30mm W

Product Code: YW4S-3E20

  • Selector switch with 10 A rating
  • Operates at 50/60 Hz frequency
  • IP20/IP65 protection for durability
  • Maintained function with 2NO contacts
  • Fits 22 mm mounting hole
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 69.8D
No. of Normally-open Contacts 2
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Metal
Bezel Shape Round
Contact Configuration 2NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW4S-3E20 is a robust metal selector switch featuring a 3-position maintained operation with two Normally Open (NO) contacts. Designed for 22mm mounting, this switch includes a durable metal bezel and space-efficient, 10mm thick contact blocks. Its compact and lightweight design does not compromise on strength, while the removable operator and separate contact block ensure straightforward installation and maintenance. This selector switch is an ideal solution for industrial applications where space is at a premium and reliability is essential.
