Specifications

Maximum Cable Cross Section (mm²)	2.5
Maximum Ambient Temperature (°C)	80
Minimum Cable Cross Section (mm²)	0.75
Maximum Actuating Speed (m/s)	2.5
Rated Operational Current AC-15 (A)	4
Rated Operational Current DC-13 (A)	4
Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-30
Termination	Screw Terminals M20 x 1.5
Sensor Length (mm)	60.55
Switching Frequency	5000/h
Sensor Width (mm)	40.5
Sensor Height (mm)	129.5
Rated Short-circuit Current (A)	1000
Minimum Mechanical Life	30000000 Operations
Maximum Fuse Rating	6 A gG D-fuse
Lever Material	Metal Film
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24V DC
Utilisation Category	DC-13
Castor Material	Stainless Steel (V2A)

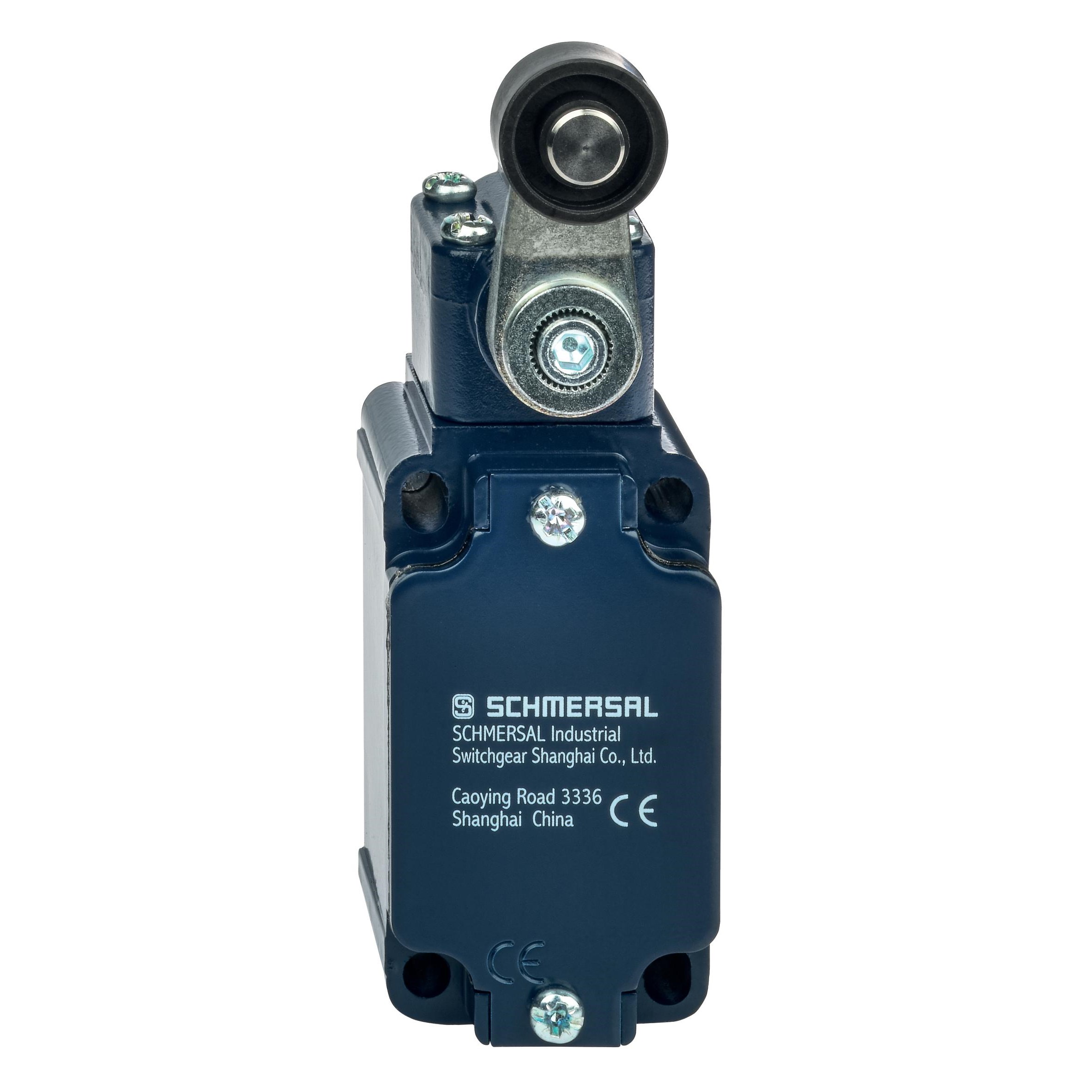

Product Type	Position Switch with Safety Function
Brand	SCHMERSAL
Actuating Element	Roller Lever
Actuating Speed	2.5 m/s
Actuator Type	A - According to EN 50041
Contact Material	Silver
Enclosure Coating Material	Painted
Housing Material	Painted
Mechanical Life	30000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	4 A
Rated Frequency	5000/h
Rated Voltage	230 VAC, 24 VDC
Sensor Size	60.55 mm L x 40 mm W x 129.5 mm H
Standards and Approvals	EN ISO 13849-1
