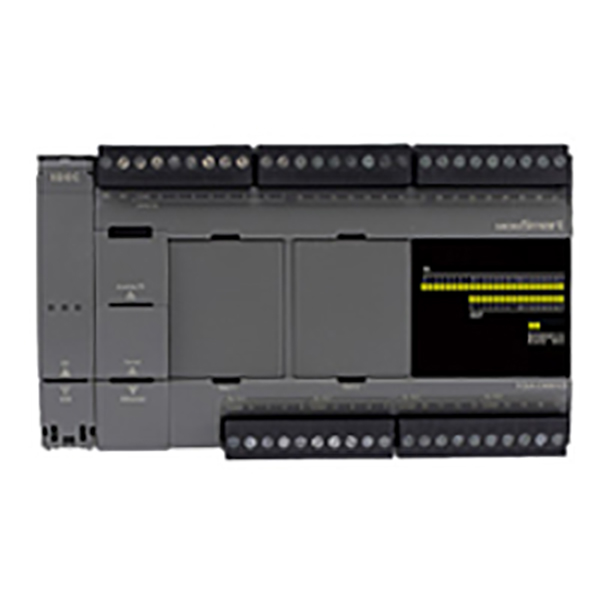

IDEC CPU 12V DC TRANSISTOR SINK MICRO SMART PLC FC6A-C40K1DE

Product Code: FC6A-C40K1DE

The IDEC FC6A-C40K1DE is a versatile MicroSmart PLC designed for complex automation tasks. It features 40 I/O with J1939 support, 24VDC transistor sink outputs, and an embedded SD memory port for enhanced data management. This PLC offers robust communication options including Modbus TCP and RTU, as well as user-selectable RS232C/RS485 interfaces. With data logging capabilities and web server functions, it ensures comprehensive control and monitoring. Certified with cULus CE Class 1 Div 3, it meets stringent safety standards for reliable use in hazardous locations.

Technical Specifications

Colour Black
Brand IDEC
Programming Language Ladder, Script
Warranty Period (Months) 36
Operational Temperature Range (°C) -25 to 65
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 12
Power Consumption (W) 3.12
Rated Frequency (Hz) 50/60
Dimensions (mm) 106.5W x 163H x 75.7D
Timer Function 1024
Weight (g) 530
Voltage Range (DC) 10.2 to 18
Voltage Range AC (V) 85 to 264
