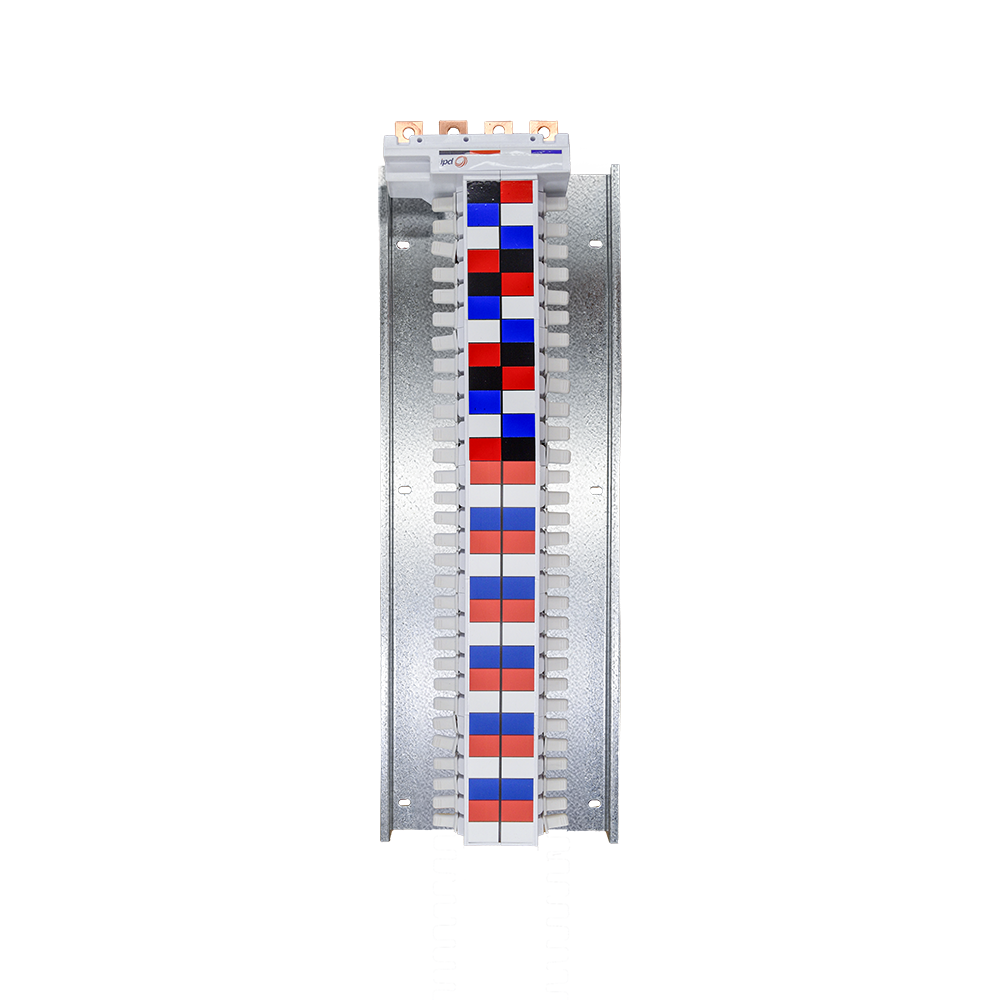

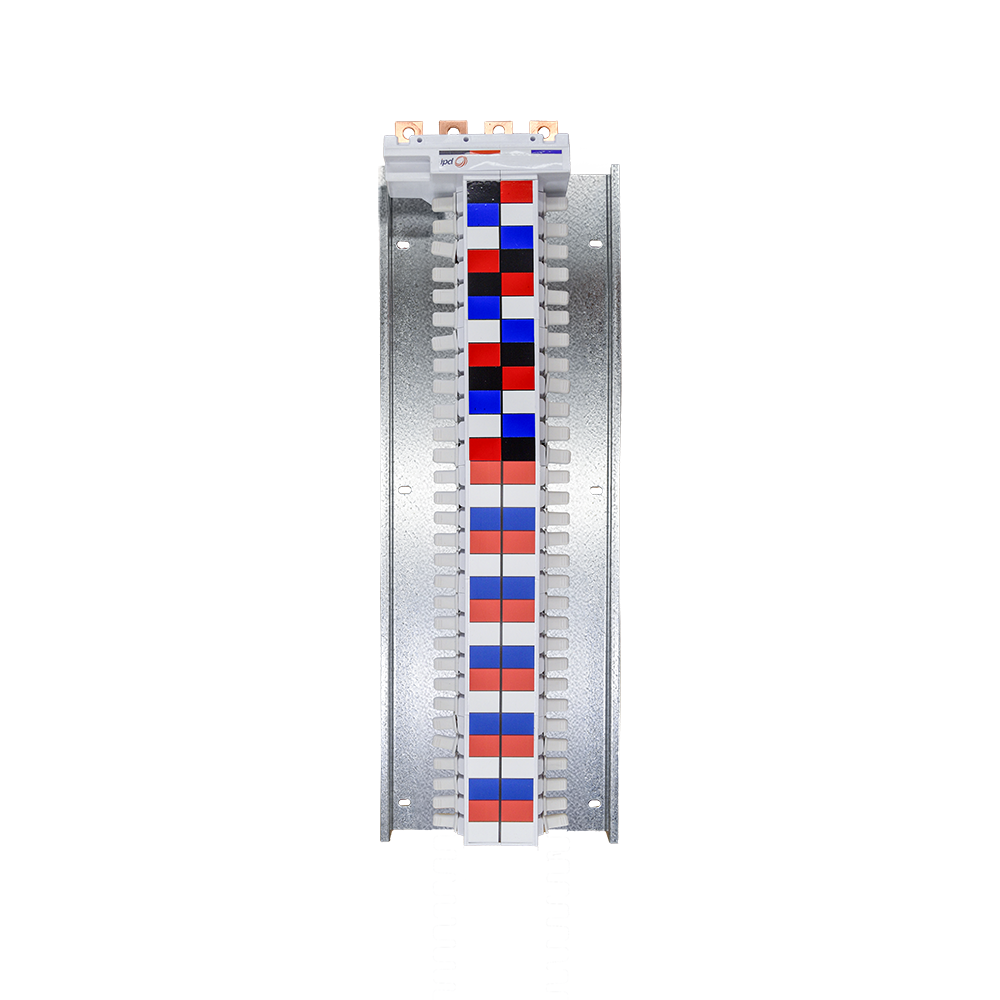

IPD IT43R24/36A25T ENCAP. CHASSIS 24P RWBN+36P RWB 250A

Product Code: IT43R24/36A25T

The Encapsulated Chassis 60P is a durable and reliable product designed for engineers. It features a top feed withstand rating of 250A, with Icw ratings of 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The chassis is made with 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It also has a duravin SCI-TV coating that is suitable for S200 breakers in the IA range IPD.

Technical Specifications

Brand IPD
Current Rating (A) 250
Feed Type Top Feed
No. of Poles 24 RWBN + 36 RWB
Rated Current (A) 250
Type of Feed Top Feed
Wiring Type RWBN/RWB
Poles 60
