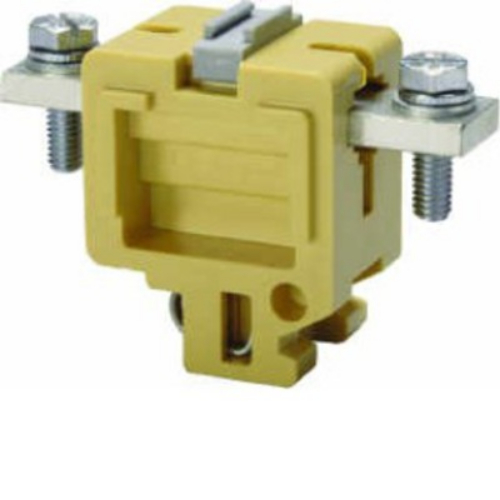

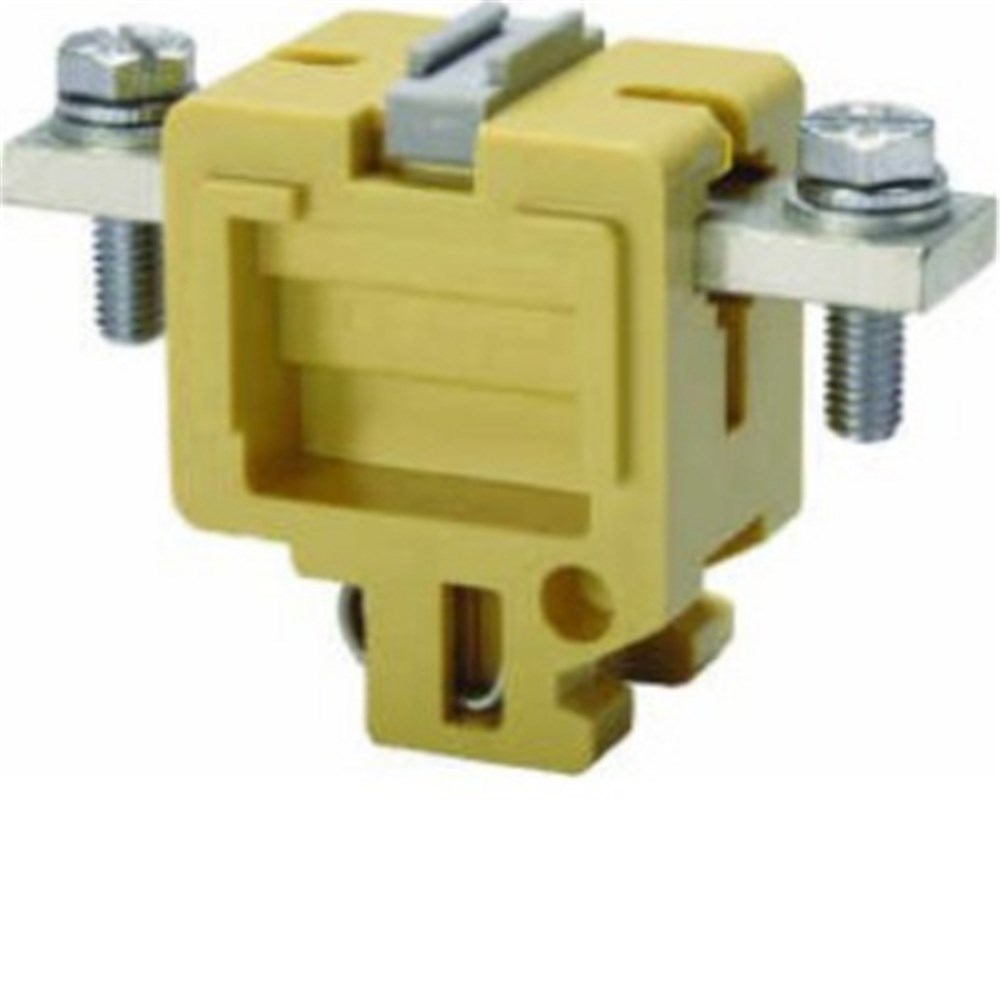

CONNECTWELL CTS95L MELAMINE TERMINAL BLOCK BUSBAR LUG CONNECTION 35 - 95mm² 1000V/232A
Zoom
Zoom
CONNECTWELL CTS95L MELAMINE TERMINAL BLOCK BUSBAR LUG CONNECTION 35 - 95mm² 1000V/232A
Product Code: CTS95L
Melamine terminal block with busbar lug connection. Conductor cross section is stranded 35 - 95mm². Dimensions are 92mm (L) x 40mm (W) x 52mm (H). The colour is beige. It has a feed through of 1000V/232A. Can be mounted on DIN 32 rail.
Technical Specifications
Brand
CONNECTWELL
Colour
Beige
Conductor Cross Section - Stranded (mm²)
35 - 95
Dimensions (mm)
92L x 40W x 52H
Mounting Type
DIN Rail
Rated Current (A)
232
Rated Voltage (V)
1000
Screw Size
M10
Tightening Torque (Nm)
10
Documents
Datasheet
Product catalogue (Flipbook)
