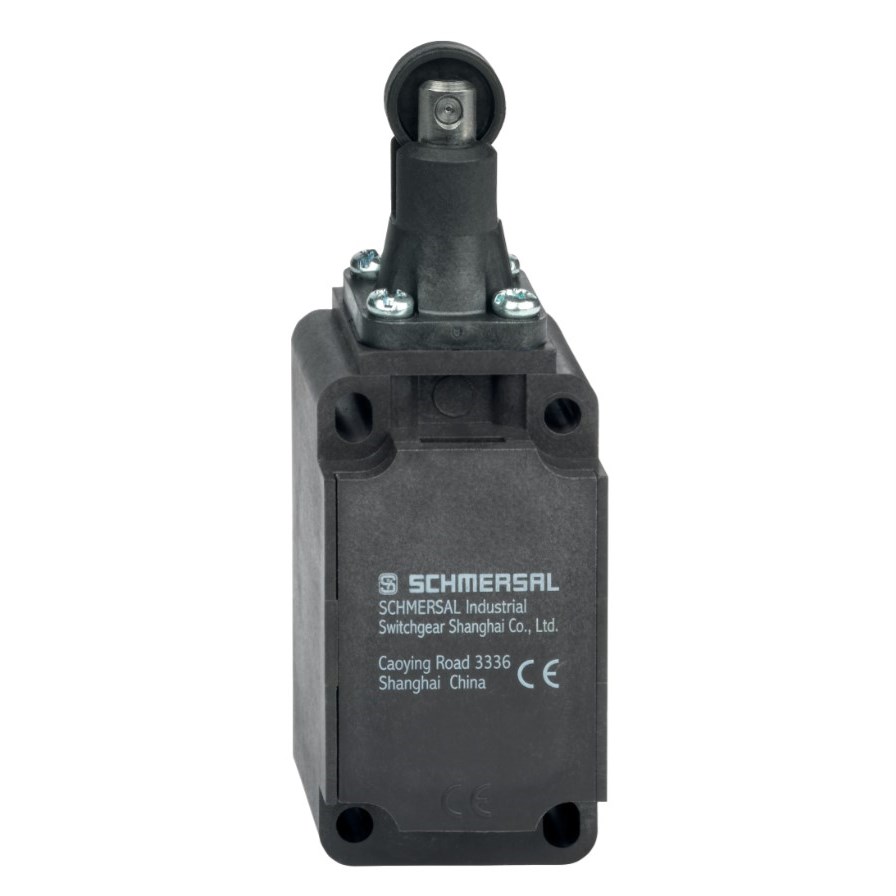

Schmersal 151167094 Position Switch with Safety Function 2NC

Product Code: 151167094

  • 2NC contact configuration for secure operations
  • Durable plastic housing with glass fibre reinforcement
  • High protection rating of IP65, IP67
  • Operates in temperatures from -30 to 80°C
  • Complies with BG-GS-ET-15, EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch with Safety Function
Brand Schmersal
Action Slow Action
Contact Configuration 2NC
Degree of Protection IP65, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Operational Temperature -30 to 80 deg C
Rated Insulation Voltage 500 V
Standards and Approvals BG-GS-ET-15, EN IEC 60947-5-1, EN ISO 13849-1
Weight 105 g

Description

<p>When it comes to industrial and commercial applications, selecting the right component is critical for ensuring operational efficiency and safety. This particular product offers a robust solution with its 2NC contact configuration, making it suitable for various control circuits where normally closed contacts are required.</p><p>The housing of this device is constructed from glass fibre reinforced thermoplastic, which provides excellent durability while maintaining a lightweight design at just 105 grams. The combination of plastic and glass fibre reinforcement ensures that the product can withstand harsh conditions without compromising on performance.</p><p>In terms of protection, this product meets IP65 and IP67 standards. This means it is dust-tight and protected against water ingress from powerful jets as well as temporary immersion in water up to one meter deep. Such features make it ideal for environments where moisture or particulate matter could be a concern.</p><p>Operating efficiently over a wide temperature range from -30 to 80 degrees Celsius, this device is versatile enough to handle extreme Australian climates—from chilly winter mornings to scorching summer afternoons—without faltering in performance.</p><p>Compliance with standards such as BG-GS-ET-15, EN IEC 60947-5-1, and EN ISO 13849-1 underscores its reliability and suitability for safety-related applications. These certifications indicate that the product adheres to rigorous international safety and quality benchmarks, providing peace of mind when used in sensitive operations.</p><p>The slow-action mechanism incorporated within this unit ensures controlled operation under dynamic load conditions. It contributes to reducing mechanical wear over time by minimizing abrupt movements during operation—a valuable feature in prolonging the lifespan of machinery components.</p><p>Rated with an insulation voltage of up to 500 V, this product can effectively handle high-voltage applications while ensuring user safety through reliable insulation properties. This makes it particularly useful in settings where electrical integrity cannot be compromised.</p><p>Overall, if you’re looking for a dependable component that combines resilience with compliance across demanding industrial environments, this offering stands out with its thoughtful engineering tailored towards enduring performance.</p>
