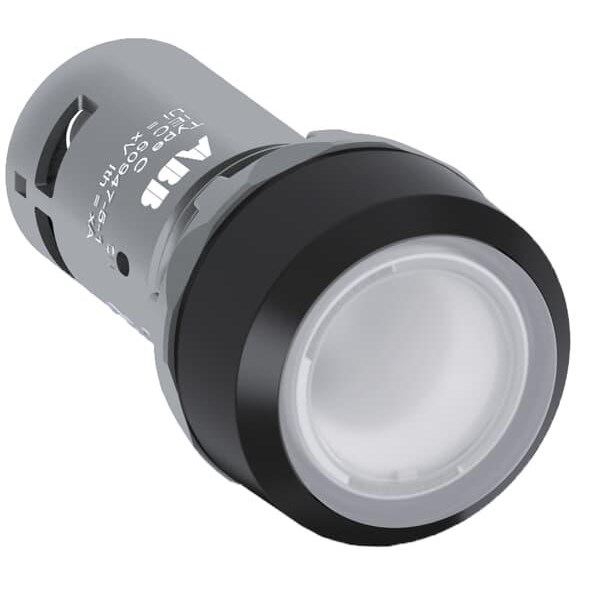

<p>The CP series illuminated pushbutton is a robust and reliable choice for industrial and commercial applications. Designed to handle demanding environments, this pushbutton offers a rated voltage of 110-130 VAC/DC and operates efficiently within the frequency range of 50/60 Hz. Its compact dimensions—30 mm in width, height, and a depth of 55 mm—make it suitable for various installations without compromising on performance.</p><p>Engineered to withstand harsh conditions, the pushbutton is operational from -25 to 70 degrees Celsius, with storage capabilities ranging from -40 to 85 degrees Celsius. The product&#39;s front boasts an impressive degree of protection with IP66, IP67, and IP69K ratings, ensuring resistance against dust ingress and high-pressure water jets. Meanwhile, the terminal holds an IP20 rating. This level of protection makes the device ideal for environments where exposure to moisture or contaminants is a concern.</p><p>Safety compliance is assured through adherence to multiple standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, and EN IEC 60529. With a mechanical life expectancy of half a million operations and a rated thermal current capacity of up to 5 A, this pushbutton promises durability alongside consistent functionality.</p><p>The flush actuator type enhances ease-of-use while maintaining sleek aesthetics. Illumination is provided by a clear LED lamp which ensures visibility under varied lighting conditions without drawing excessive power. The momentary function allows users precise control over their operations.</p><p>Installation is straightforward due to its screw terminal connection type that supports flexible wires with ferrules as well as solid wires ranging from 0.5 sq-mm up to 1.5 sq-mm in size; wire stripping length required is just six millimeters which simplifies preparation during setup.</p><p>For added peace of mind regarding electrical integrity during surges or spikes in voltage levels—the unit features an impressive rated impulse withstand voltage capability at six kilovolts along with insulation rating supporting up till three hundred volts making sure your systems remain protected even under unforeseen circumstances like lightning strikes etcetera!</p><p>Weighing only twenty-five grams yet housing significant protective measures within its plastic bezel enclosure categorized under NEMA types one twelve thirteen three R four &amp; four X further emphasizes how thoughtfully designed these units are catering specifically towards meeting requirements set forth by professionals across industries seeking reliable solutions aligned closely alongside their technical specifications!</p>
