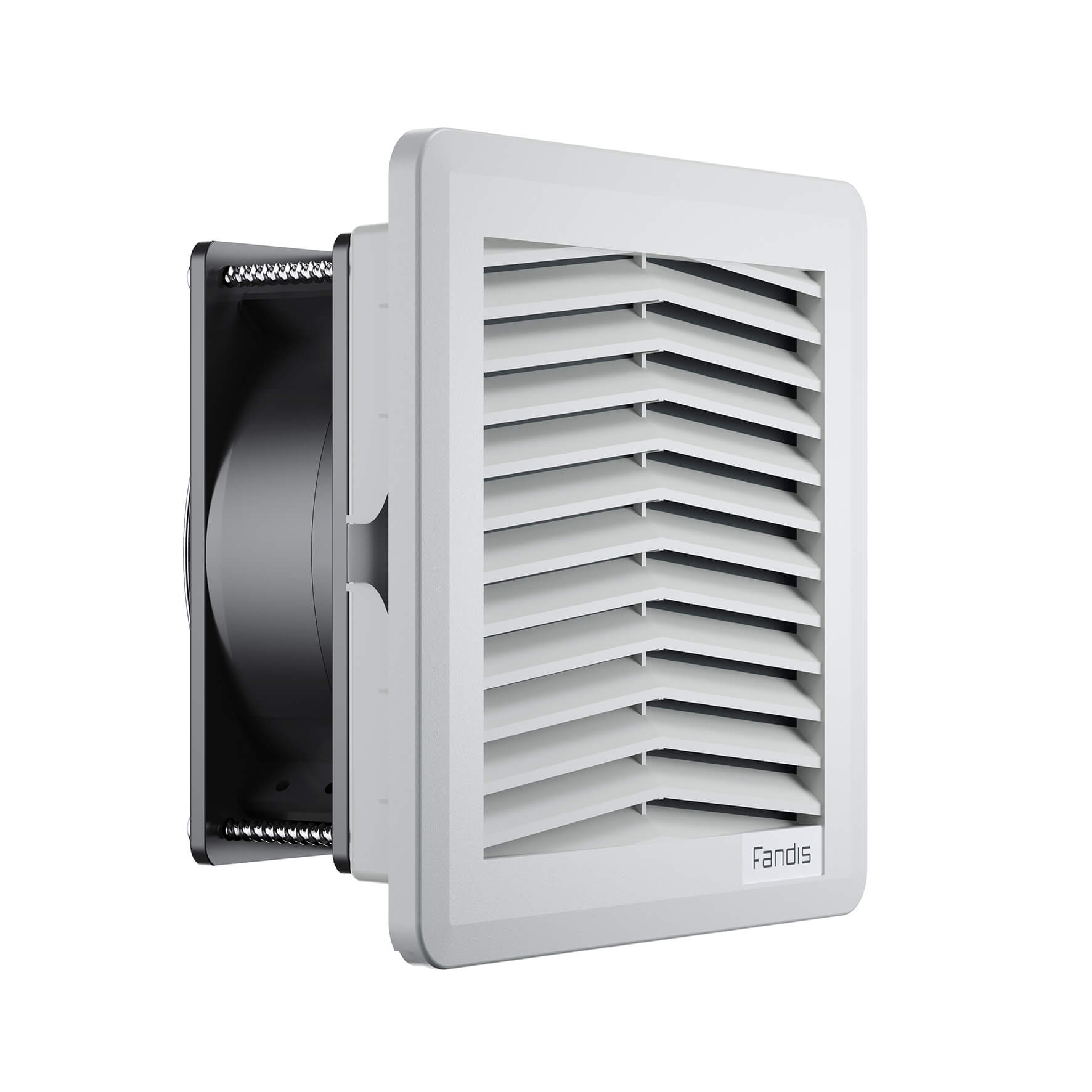

Fandis FF12A230UF Fan Filter 45cu-m/h 50cu-m/h 230VAC IP54 150W 150H RAL7035 Light Grey

Product Code: FF12A230UF

  • Airflow options: 45 or 50 cu-m/h
  • Power-efficient at 17-18 W
  • IP54 protection rating
  • Compact size: 150x150x150 mm
  • Complies with cCSAus, CE, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Fan Filter
Brand FANDIS
Air Flow 45 cu-m/h, 50 cu-m/h
Airflow with Exhaust Filter 29 cu-m/h, 34 cu-m/h
Bearing Type Ball
Casing Material ABS
Colour Light Grey RAL 7035
Degree of Protection IP54
Height 150 mm
Length 150 mm
Noise Level 46 dBA, 49 dBA
Nominal Frequency 50/60 Hz
Operational Temperature -10 to 55 deg C
Rated Current 0.11 A, 0.1 A
Rated Operational Voltage 216-244 VAC
Rated Power 18 W, 17 W
Rated Voltage 230 VAC
Standards and Approvals cCSAus, CE, cULus, cURus, UKCA
Width 150 mm
Wire Cross Section 14-20 AWG

Description

<p>When selecting a fan filter unit for industrial or commercial applications, it&amp;#39;s crucial to consider both performance and compliance with relevant standards. This particular Fan Filter Unit is designed with precision to meet the demanding needs of various environments, offering a balanced combination of efficiency and reliability.</p><p>With an airflow capacity of 45 to 50 cubic meters per hour, this unit ensures optimal ventilation while maintaining energy efficiency. It operates at a rated power of 17 to 18 watts and requires a voltage supply ranging from 216 to 244 VAC, making it suitable for most standard electrical systems in Australia. The unit&amp;#39;s current draw is minimal, between 0.1 and 0.11 amps, which supports its cost-effective operation over time.</p><p>The fan filter unit is encased in durable ABS material and features a compact design with dimensions of 150 mm in width, height, and length. Its light grey color (RAL 7035) allows it to blend seamlessly into most settings without drawing unnecessary attention.</p><p>One standout feature is its IP54 degree of protection, safeguarding the internal components against dust ingress and splashing water from any direction—ideal for challenging environments where maintenance can be less frequent but reliability remains critical.</p><p>Noise levels are kept manageable at either 46 or 49 dBA depending on operational conditions—a consideration that ensures comfort in workspaces where noise pollution must be minimized.</p><p>For those concerned about temperature variations, this unit operates efficiently within an extensive range from -10&amp;#176;C to +55&amp;#176;C. It accommodates wire cross sections between AWG sizes of 14-20, providing flexibility during installation.</p><p>Moreover, this product meets multiple international standards: cCSAus, CE, cULus, cURus, UKCA certifications affirm its safety and quality across different markets—an assurance that it complies with rigorous industry regulations globally.</p><p>Additionally equipped with ball bearings known for longevity and reduced friction wear-and-tear over time; these contribute significantly towards the overall durability expected by professionals who rely on consistent performance from their equipment day-in-day-out.</p><p>Whether you&amp;#39;re installing new systems or upgrading existing setups needing efficient filtration solutions—the integration capability alongside exhaust filters adjusts airflow down slightly (to around 29-34 cu-m/h), still ensuring effective air circulation tailored precisely according your specifications without compromising output efficacy whatsoever!</p><p>This Fan Filter Unit offers robust functionality backed by comprehensive approvals suited well within diverse applications across varied sectors!</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
