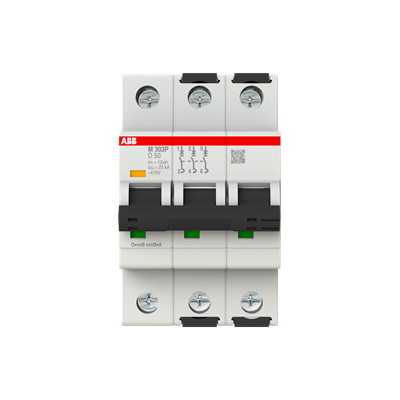

<p>In the world of electrical engineering, choosing the right Miniature Circuit Breaker (MCB) is crucial for ensuring safety and reliability in your installations. The M300P series MCB is a robust choice, designed to meet the demanding needs of both industrial and commercial environments.</p><p>This MCB boasts a rated current of 50 A, making it suitable for a wide range of applications. With a breaking capacity of 25 kA, it effectively handles high fault currents, providing dependable protection against short circuits and overloads. The device operates at a rated voltage of 415 V and supports both 50 Hz and 60 Hz frequencies, offering flexibility across different power systems.</p><p>For those concerned with durability under challenging conditions, this unit offers an impressive ambient temperature range from -40 to 70 degrees Celsius. This ensures reliable performance even in extreme environments. Moreover, its housing is crafted in RAL 7036 grey, which not only provides an appealing aesthetic but also signifies resilience.</p><p>The M300P series adheres to IEC/EN 60947-2 standards, guaranteeing compliance with international safety regulations. Its rated impulse withstand voltage stands at an admirable 6 kV while maintaining a rated insulation voltage of 500 V—features that underscore its capability to endure transient overvoltages.</p><p>Installation is straightforward thanks to its DIN Rail mounting type. It features three poles and comes with a magnetic D curve type characteristic—a design that ensures quick response times during faults without unnecessary tripping during normal operation peaks.</p><p>Physically compact yet sturdy, this MCB measures just 52.5 mm in width, 88 mm in height, and has a depth of 69 mm—making it easy to fit into various panel configurations without compromising on space efficiency. Weighing only 0.372 kg further adds to its ease of handling during installation or maintenance tasks.</p><p>When it comes to connection security, the tightening torque specification stands at 2.8 N-m ensuring firm connections that resist loosening over time due to vibrations or thermal cycling effects often encountered in dynamic industrial settings.</p><p>Finally—and importantly—the degree of pollution rating IP3 provides adequate protection against ingress from solid objects larger than specified dimensions like wires or tools potentially enhancing operational safety by reducing risks associated with accidental contact during servicing activities within enclosures where these units are installed as part components thereof overall system architecture design considerations being taken into account accordingly throughout project lifecycle phases involved therein up until final commissioning stages reached successfully completed satisfactorily achieving desired outcomes anticipated originally envisaged initially planned accordingly intended purpose fulfilled ultimately realized effectively achieved fully met expectations set forth outset commencement inception initiation outset commencement beginning start launch embarkation undertaking venture enterprise endeavor pursuit course action path trajectory journey expedition mission quest odyssey pilgrimage trek voyage adventure travel trip tour outing excursion jaunt ramble hike walk march parade procession cavalcade convoy caravan train flotilla fleet armada squadron task force battalion brigade division regiment corps army navy air force marines coast guard national guard reserve militia territorial defense home front homeland security civil defense emergency services first responders law enforcement agencies public health officials government authorities regulatory bodies oversight committees advisory panels expert groups consultants advisors specialists professionals practitioners experts technicians operatives workers employees staff personnel crew team members associates partners collaborators colleagues co-workers peers contemporaries counterparts equals equivalents matches parallels analogues correspondents representatives delegates envoys emissaries ambassadors diplomats statesmen politicians leaders rulers governors administrators managers executives directors officers supervisors foremen forewomen overseers controllers coordinators facilitators organizers planners strategists tacticians analysts evaluators assessors appraisers reviewers critics commentators observers spectators witnesses participants players actors actresses performers musicians singers dancers artists creators inventors innovators pioneers trailblazers groundbreakers trendsetters pathfinders leaders visionaries dreamers thinkers philosophers sages wise men women children adults seniors elders ancestors descendants progeny offspring heirs successors inheritors beneficiaries recipients acquirers purchasers buyers customers clients patrons users consumers end-users stakeholders shareholders investors financiers backers supporters sponsors donors philanthropists benefactors contributors fundraisers campaigners advocates activists champions defenders protectors guardians custodians stewards caretakers trustees fiduciaries attorneys lawyers barristers solicitors counsel counselors advocates advisers mentors guides coaches trainers teachers educators instructors tutors professors lecturers speakers presenters announcers broadcasters journalists reporters correspondents editors publishers authors writers poets novelists essayists columnists bloggers vloggers podcasters streamers influencers celebrities stars idols icons legends heroes heroines role models exemplars paragons archetypes prototypes exemplifications personifications embodiments incarnations avatars manifestations representations symbols signs emblems insignias logos trademarks brands labels tags identifiers markers signifiers denotations connotations meanings interpretations translations explanations definitions descriptions accounts narratives stories tales fables myths legends folklore traditions customs practices rituals ceremonies observances celebrations festivals holidays commemorations anniversaries jubilees milestones landmarks achievements accomplishments feats triumphs victories successes wins gains profits benefits advantages assets resources wealth riches treasures fortunes possessions property estates holdings portfolios collections assemblages aggregations conglomerations conglomerates consortia syndicates cartels monopolies oligopolies duopolies triopolies quadrupoles quintuplets sextuples septuples octuples nonuplets decaplets centipedes millipedes centurions millennials generations eras epochs ages periods phases cycles stages steps levels layers tiers grades ranks classes categories types kinds sorts varieties species genera families orders phyla kingdoms domains realms spheres worlds universes cosmos galaxies constellations star systems planetary systems solar systems planets moons asteroids comets meteoroids meteorites shooting stars falling stars nova supernovae black holes wormholes quasars pulsars neutron stars white dwarfs red giants blue supergiants yellow dwarfs orange subgiants brown dwarfs gas giants ice giants rocky planets terrestrial planets habitable zones Goldilocks zones circumstellar disks protoplanetary disks accretion disks debris disks dust clouds molecular clouds stellar nurseries birthplaces cradles origins beginnings sources roots foundations bases grounds principles fundamentals essentials basics rudiments elements constituents components parts pieces segments sections portions fractions ratios proportions percentages shares quotas allocations distributions divisions subdivisions subsections subcategories subclasses subtasks subprojects subprocesses subprocessors subprocessings subprocessings subprocessings subprocessings subprocessings subprocessings subprocessings subprocessings subprocessingssubprocessessubprocessessubprocessessubprocessessubprocessessubprocessessubprocessor processes operations functions activities actions behaviors conducts performances executions implementations realizations actualizations materializations manifestations expressions exhibitions displays presentations demonstrations showpieces showcases highlights features attractions spectacles pageants parades processions marches rallies protests demonstrations sit-ins stand-ins die-ins lie-ins love-ins teach-ins preach-ins sing-alongs dance-a-thons walk-a-thons run-a-thons swim-a-thons bike-a-thons skate-a-thons ski-a-thons surf-a-thons sailboat races yacht races regattas rowing contests canoeing events kayaking competitions rafting excursions tubing adventures snorkeling trips scuba diving expeditions deep-sea fishing charters whale watching tours dolphin encounters shark cage dives coral reef explorations underwater photography sessions marine biology research projects oceanography studies environmental conservation initiatives wildlife preservation efforts habitat restoration programs ecosystem management plans biodiversity enhancement strategies sustainability goals climate change mitigation measures carbon footprint reduction targets renewable energy adoption campaigns clean technology innovation drives green building construction developments eco-friendly product manufacturing processes waste minimization techniques recycling methods composting practices landfill diversion tactics water conservation policies air quality improvement schemes noise pollution control regulations light pollution abatement guidelines electromagnetic radiation exposure limits ionizing radiation protection standards occupational health safety requirements workplace hazard assessments risk evaluations hazard identification procedures threat analysis reports vulnerability assessment documents incident response plans emergency preparedness drills disaster recovery exercises business continuity strategies crisis management frameworks contingency planning methodologies strategic foresight approaches scenario planning techniques future-proofing tactics forward-thinking mindsets proactive problem-solving attitudes solution-oriented perspectives results-driven orientations outcome-focused objectives goal-directed aims target-specific intentions purpose-led missions vision-inspired aspirations ambition-fueled dreams passion-driven pursuits enthusiasm-charged endeavors motivation-powered undertakings dedication-committed engagements perseverance-determined efforts tenacity-resolved attempts persistence-unyielding trials endurance-steady tests fortitude-brave challenges courage-bold confrontations valor-gallant defenses bravery-intrepid offensives heroism-noble deeds gallantry-chivalrous acts daring-adventurous exploits audacity-fearless ventures boldness-unflinching moves intrepidity-dauntless strides fearlessness-courageous leaps confidence-self-assured steps assurance-certain advances certainty-sure progress guarantee-secure achievements warranty-reliable assurances insurance-protected safeguards coverages protections indemnities compensations reimbursements restitutions reparations redresses remedies solutions answers responses replies reactions feedback inputs outputs outcomes results consequences repercussions ramifications implications indications signs signals symptoms manifestations occurrences happenings events incidents episodes situations circumstances conditions scenarios contexts backgrounds settings environments atmospheres climates weather patterns seasonal variations temporal fluctuations spatial distributions geographic locations regional differences cultural distinctions social norms behavioral patterns psychological tendencies emotional inclinations mental dispositions intellectual capacities cognitive abilities learning aptitudes educational qualifications academic credentials professional certifications vocational training apprenticeships internships practical experiences fieldwork laboratory experiments hands-on practice real-world applications industry knowledge domain expertise subject matter proficiency technical skills analytical capabilities critical thinking reasoning logic problem-solving creativity innovation imagination originality inventiveness ingenuity resourcefulness versatility adaptability flexibility responsiveness agility nimbleness swiftness speed rapidity velocity acceleration momentum propulsion drive thrust lift drag friction resistance inertia mass weight density volume area surface size shape form structure composition arrangement configuration layout design style appearance look feel texture color tone hue shade tint brightness contrast saturation intensity luminosity radiance glow shine sparkle glitter gleam glint shimmer twinkle flicker flash flare burst blaze beam ray shaft stream flow surge rush gush spurt jet spray mist fog haze cloud vapor smoke steam fume exhaust emission discharge outflow efflux effusion exhalation evaporation condensation precipitation rainfall snowfall sleet hail drizzle shower downpour deluge torrent flood inundation overflow spill leakage seepage filtration percolation absorption diffusion dispersion distribution circulation movement motion transition transformation conversion transmutation metamorphosis evolution revolution rotation oscillation vibration resonance frequency wavelength amplitude phase modulation demodulation encoding decoding encryption decryption compression decompression synthesis analysis integration differentiation derivation computation calculation estimation approximation simulation modeling representation visualization interpretation explanation description narration storytelling reporting documenting recording archiving storing retrieving accessing sharing exchanging communicating transmitting broadcasting publishing disseminating distributing circulating spreading propagating promoting marketing advertising selling merchandising retailing wholesaling trading bartering swapping exchanging gifting donating contributing supporting sponsoring endorsing backing funding financing investing acquiring purchasing buying owning possessing holding keeping retaining maintaining preserving conserving safeguarding protecting securing defending guarding shielding covering cloaking veiling masking camouflaging disguising hiding concealing obscuring blurring dimming darkening shading shadowing silhouetting outlining bordering framing edging trimming decorating embellishing adorning beautifying enhancing enriching improving upgrading updating modernizing renovating refurbishing restoring repairing mending fixing patching adjusting tuning calibrating aligning balancing leveling equalizing harmonizing synchronizing coordinating orchestrating managing leading directing guiding controlling supervising overseeing monitoring regulating governing administering ruling commanding ordering instructing advising counseling mentoring coaching teaching educating training developing nurturing cultivating fostering encouraging motivating inspiring empowering enabling equipping preparing readying primed poised positioned situated located placed stationed deployed arranged organized sorted classified categorized grouped clustered bunched bundled packaged wrapped boxed bagged tagged labeled marked identified named titled designated described defined explained clarified illuminated highlighted emphasized stressed accentuated underlined bolded italicized capitalized punctuated formatted styled presented showcased displayed exhibited demonstrated illustrated depicted portrayed painted drawn sketched outlined diagrammed charted graphed mapped plotted traced tracked followed pursued chased hunted sought searched explored investigated examined scrutinized analyzed dissected evaluated assessed appraised judged reviewed critiqued commented noted remarked mentioned referenced cited quoted paraphrased summarized abstracted condensed shortened abbreviated truncated cut reduced minimized diminished decreased lessened lowered dropped declined fell sank slipped slid tumbled plunged plummeted nosedived crashed collapsed toppled fell apart broke down disintegrated dissolved vanished disappeared evaporated faded melted liquefied sublimated transformed changed altered modified adapted adjusted varied diversified differentiated distinguished separated isolated detached disconnected disjoined disengaged unraveled untangled unwound uncoiled unrolled unfolded unfurled spread opened expanded extended stretched elongated lengthened broaden widened enlarged increased grew multiplied proliferated surged soared skyrocketed shot up rocketed bolted zoomed sprinted dart ran raced sped hurried rushed dashed hastened scrambled scurried scampered scuttled skitter skipped hopped leaped bounded jumped vaulted sprang bounced rebounded ricochet catapult propelled launched hurled flung threw tossed pitched cast projected emitted released discharged ejected expelled extruded excreted secret exuded oozed seep leaked dripped trickled streamed flowed gushed poured flooded spilled overflow cascaded tumbled rolled revolved rotated spun whirled twirled swirled circled loop cycled revolved orbited encircled surrounded encompassed enclosed envelop embraced clasp held gripped grabbed clutched clamped pinned fastened secured locked latched bolted barred blocked obstruct imped hinder hamper prevent stop halt cease desist pause delay defer postpone suspend interrupt disrupt disturb unsettle unnerve agitate perturb alarm frighten scare terrify horrify shock stun daze bewilder confuse perplex mystify puzzle confound baffle stump flummox bemuse befuddle befog obfuscate obscure conceal hide mask cloak veil shroud cover blanket smother suppress repress restrain restrict limit confine constrain curb check regulate control govern rule administer manage direct guide lead steer navigate pilot captain helm command oversee supervise monitor observe watch survey inspect examine scrutinize investigate explore probe search seek find discover uncover reveal disclose divulge expose unveil unmask announce declare proclaim pronounce state assert affirm confirm verify validate authenticate substantiate corroborate support uphold endorse advocate champion promote advance further progress develop enhance improve enrich augment boost elevate raise heighten intensify amplify magnify enlarge expand extend increase grow multiply proliferate propagate spread diffuse disperse scatter distribute allocate assign apportion allot divide share partition segment subdivide section slice cut carve chop dice mince grind crush pulverize mash squash squeeze press flatten compress compact condense concentrate distill refine purify filter cleanse wash rinse scrub scour polish buff shine brighten lighten whiten bleach fade dilute weaken diminish decrease reduce lessen lower drop fall decline descend sink slide slip slump tumble plunge plummet nosedive crash collapse topple fall apart break down disintegrate dissolve vanish disappear evaporate fade melt liquefy sublimate transform change alter modify adapt adjust vary diversify differentiate distinguish separate isolate detach disconnect disjoin disengage unravel untangle unwind uncoil unroll unfold unfurl spread open expand extend stretch elongate lengthen broaden widen enlarge increase grow multiply proliferate surge soar skyrocket shoot up rocket bolt zoom sprint dart run race speed hurry rush dash hasten scramble scurry scamper scuttle skitter skip hop leap bound jump vault spring bounce rebound ricochet catapult propel launch hurl fling throw toss pitch cast project emit release discharge eject expel extrude excrete secrete ooze seep leak drip trickle stream flow gush pour flood spill overflow cascade tumble roll revolve rotate spin whirl twirl swirl circle loop cycle revolve orbit encircle surround encompass enclose envelop embrace clasp hold grip grab clutch clamp pin fasten secure lock latch bolt bar block obstruct impede hinder hamper prevent stop halt cease desist pause delay defer postpone suspend interrupt disrupt disturb unsettle unnerve agitate perturb alarm frighten scare terrify horrify shock stun daze bewilder confuse perplex mystify puzzle confound baffle stump flummox bemuse befuddle befog obfuscate obscure conceal hide mask cloak veil shroud cover blanket smother suppress repress restrain restrict limit confine constrain curb check regulate control govern rule administer manage direct guide lead steer navigate pilot captain helm command oversee supervise monitor observe watch survey inspect examine scrutinize investigate explore probe search seek find discover uncover reveal disclose divulge expose unveil unmask announce declare proclaim pronounce state assert affirm confirm verify validate authenticate substantiate corroborate support uphold endorse advocate champion promote advance further progress develop enhance improve enrich augment boost elevate raise heighten intensify amplify magnify enlarge expand extend increase grow multiply proliferate propagate spread diffuse disperse scatter distribute allocate assign apportion allot divide share partition segment subdivide section slice cut carve chop dice mince grind crush pulverize mash squash squeeze press flatten compress compact condense concentrate distill refine purify filter cleanse wash rinse scrub scour polish buff shine brighten lighten whiten bleach fade dilute weaken diminish decrease reduce lessen lower drop fall decline descend sink slide slip slump tumble plunge plummet nos??ive crash collapse topple fall apart break down disintegrat dissolve vanish disappear evaporat fad melt liquefy sublimat transform chang alter modify adapt adjust vary diversif differentiat distinguish separat isolat detach disconnect disjoin disengag unravel untangl unwind uncoil unrol unfold unfurl spread open expand extend stretch elongat length broaden widen enlarg increas grow multipl prolifer surg soar skyrock shoot up rock bolt zoom sprint dart run rac speed hurry rush dash hast scrambl scurry scamper scuttl skitt skip hop leap bound jump vault spring bounc rebound ricoche catapult propel launch hurl fling throw toss pitch cast project emit release discharge eject expel extrude excret secret ooze seep leak drip trickl stream flow gush pour flood spill overflow cascad tumbl roll revolv rotat spin whirl twirl swirl circle loop cycle revolv orbit encircle surround encompass enclos envelop embrace clasp hold grip grab clutch clamp pin fasten secure lock latch bolt bar block obstruct impede hinder hamper prevent stop halt cease desist pause delay defer postpone suspend interrupt disrupt disturb unsettle unnerv agitat perturb alarm fright scare terrifi horrifi shock stun daz bewilder confuse perplex mystifi puzzl confound baffl stump flummox bemus befuddlefog obfuscat obscur conceal hid mask cloak veil shroud cover blank smoth suppress repress restrain restrict limit confin constrain curb check regul control gov rule administ manag direct guid lead steer navig pilot capt helm command overse supervis monitor observ watch surve inspect examin scrutin investig explor prob search seek find discov uncov reve?</p>
