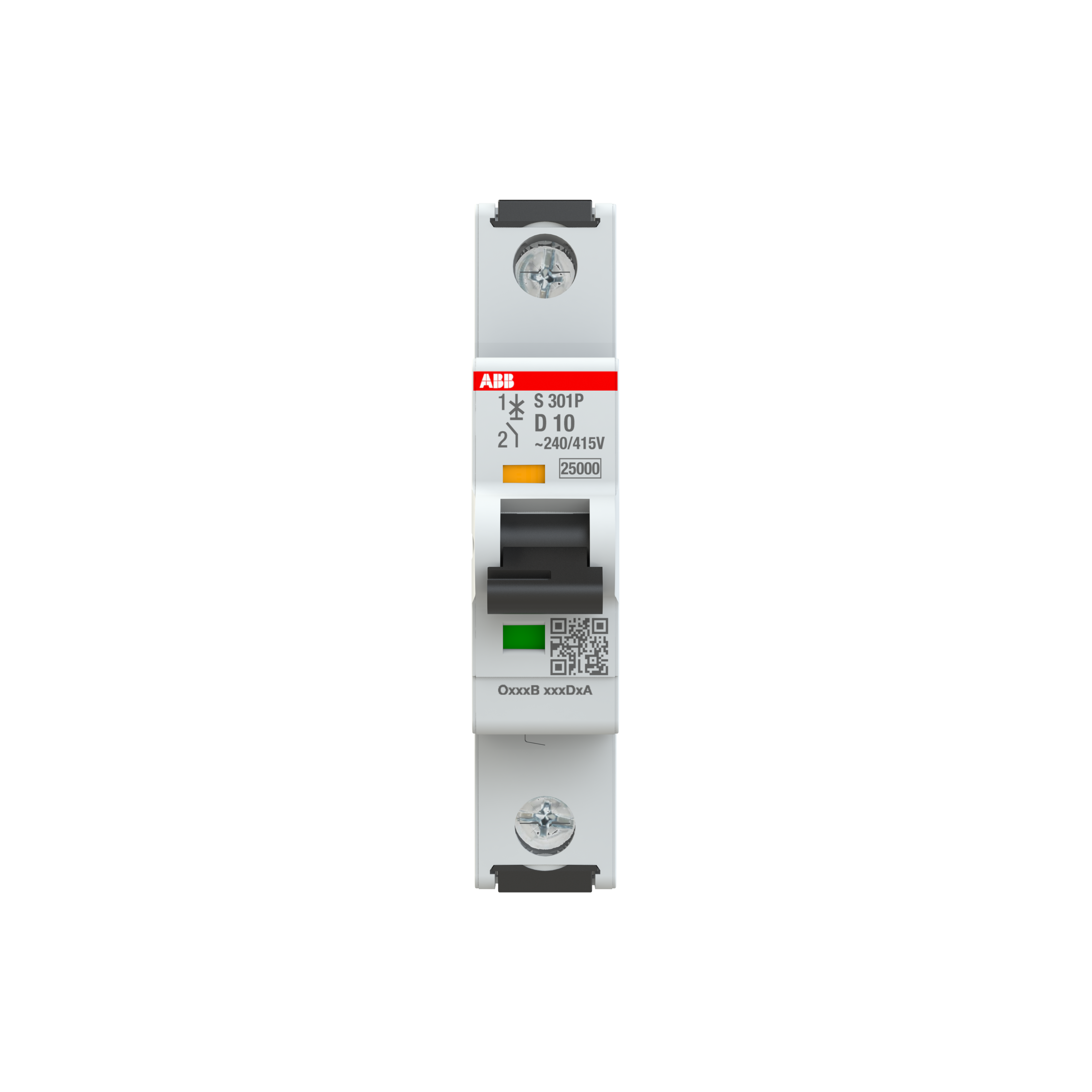

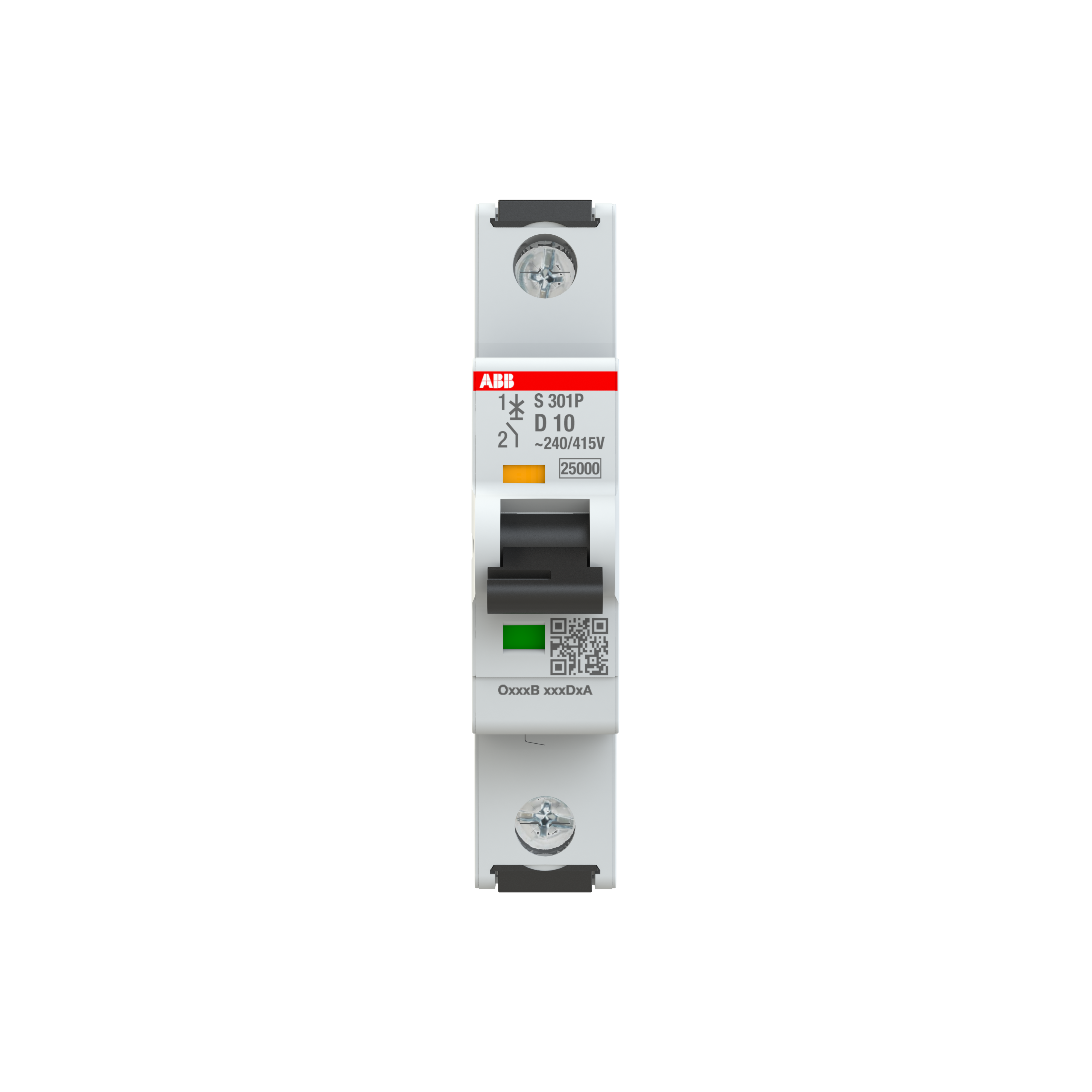

<p>The S300P Series Miniature Circuit Breaker (MCB) is engineered to meet the demands of industrial and commercial applications in Australia. With a rated current of 10 A, it ensures reliable protection for electrical circuits against overloads and short circuits. This MCB features a robust breaking capacity of 15 kA, making it suitable for environments where high fault levels are anticipated.</p><p>Designed with versatility in mind, the S300P accommodates both single-phase systems with its 240 VAC rated voltage. Its rated insulation voltage stands at 500 V, while the rated impulse withstand voltage is an impressive 6 kV, ensuring resilience against transient surges.</p><p>The compact dimensions—17.5 mm width, 88 mm height, and 67.6 mm depth—allow for efficient space utilization on DIN rail installations. The unit&#39;s weight is a manageable 0.124 kg, facilitating easy handling during installation or maintenance.</p><p>This MCB adheres to rigorous standards such as CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications that assure compliance with safety requirements globally recognized within the industry.</p><p>Operational flexibility is enhanced by its ability to function across a wide ambient temperature range from -40 to +70 degrees Celsius and can be mounted in any position without affecting performance due to its arbitrary power supply connection capability.</p><p>The terminal type is screw clamp with a tightening torque of 2.8 N-m and supports wire stripping lengths up to 14 mm for secure connections. It offers dual degrees of protection: IP20 when installed inside an enclosure or IP40 when used standalone.</p><p>With an operational frequency range between 50/60 Hz and a dielectric test voltage rating of up to 2 kV, this device ensures consistent performance under varying conditions typical in Australian settings.</p><p>Its housing color RAL7039 grey provides not only aesthetic appeal but also helps maintain visibility within control panels or distribution boards where multiple devices may be installed side-by-side.</p><p>Incorporating curve type D characteristics allows this breaker model adaptability suited towards protecting equipment like transformers or motors which have higher starting currents than standard loads typically encountered elsewhere thus safeguarding critical infrastructure investments effectively over time through reduced downtimes associated otherwise potentially costly repairs/replacements needed if unprotected properly initially setup phase onwards into future operations lifecycle stages alike too!</p>
