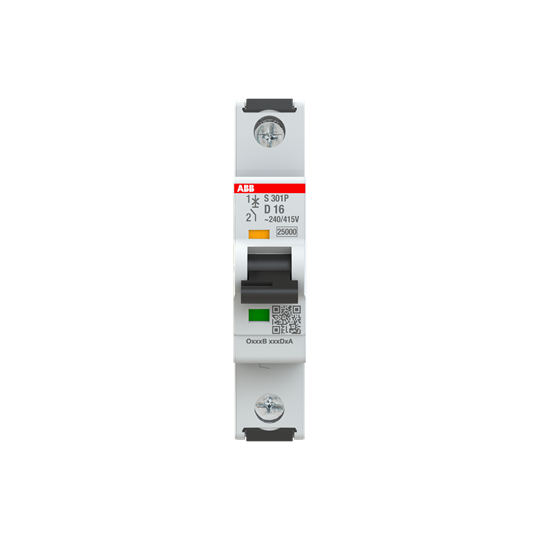

<p>The S300P series Miniature Circuit Breaker (MCB) is engineered for professionals in the industrial and commercial sectors seeking reliability and precision. With a rated current of 16 A, this MCB ensures robust protection for electrical circuits against overloads and short circuits. Its rated impulse withstand voltage stands at an impressive 6 kV, providing resilience against transient overvoltages.</p><p>Designed to operate efficiently within a range of 240 VAC, it supports both 50 Hz and 60 Hz frequencies, making it versatile across various applications. The breaking capacity is a substantial 15 kA, ensuring that even under fault conditions, the circuit breaker performs effectively without compromising safety.</p><p>This MCB boasts a single pole configuration with a compact width of just 17.5 mm, height of 88 mm, and depth of 67.6 mm—ideal for installations where space is at a premium. It features an IP20/IP40 degree of protection which makes it suitable for environments requiring moderate protection from dust or water ingress.</p><p>For ease of installation, the device employs screw clamp terminals with a tightening torque specification of 2.8 N-m and accommodates wire stripping lengths up to 14 mm. It mounts effortlessly on DIN rails in any position thanks to its arbitrary power supply connection feature.</p><p>Engineered for durability across diverse environments, this MCB operates reliably within ambient temperatures ranging from -40 to +70&#176;C. Its housing color in RAL 7039 grey complements various industrial settings while maintaining professional aesthetics.</p><p>The product complies with important standards such as CSA 22.2 No.235, IEC/EN60898-1, IEC/EN60947-2, and UL1077 certifications ensuring adherence to global safety norms.</p><p>With its D curve type characteristic offering delayed tripping suited for inductive loads like motors or transformers and dielectric test voltage rating at 2 kV further validates its robustness under high-stress conditions.</p><p>Weighing only about 0.124 kg yet packed with these features makes it not only lightweight but also highly efficient regarding power loss management at just around1 .6 W during operation contributing towards energy efficiency goals within facilities .</p><p>In conclusion , whether you’re upgrading existing systems or setting up new ones ,this mid-cycle MCB offers dependable performance backed by international standards making it an excellent choice for discerning technical audiences looking into detailed specifications before procurement decisions are made .</p>
