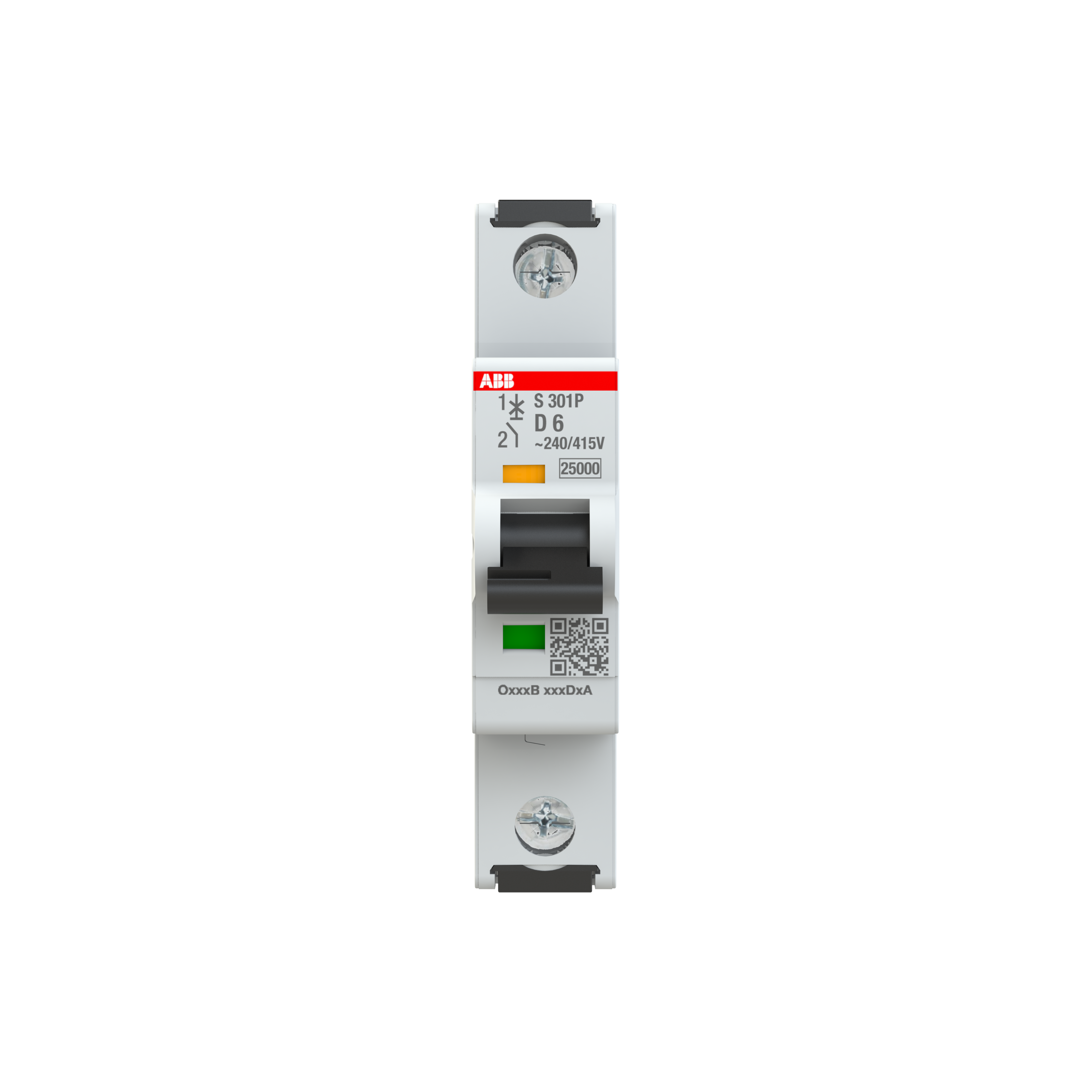

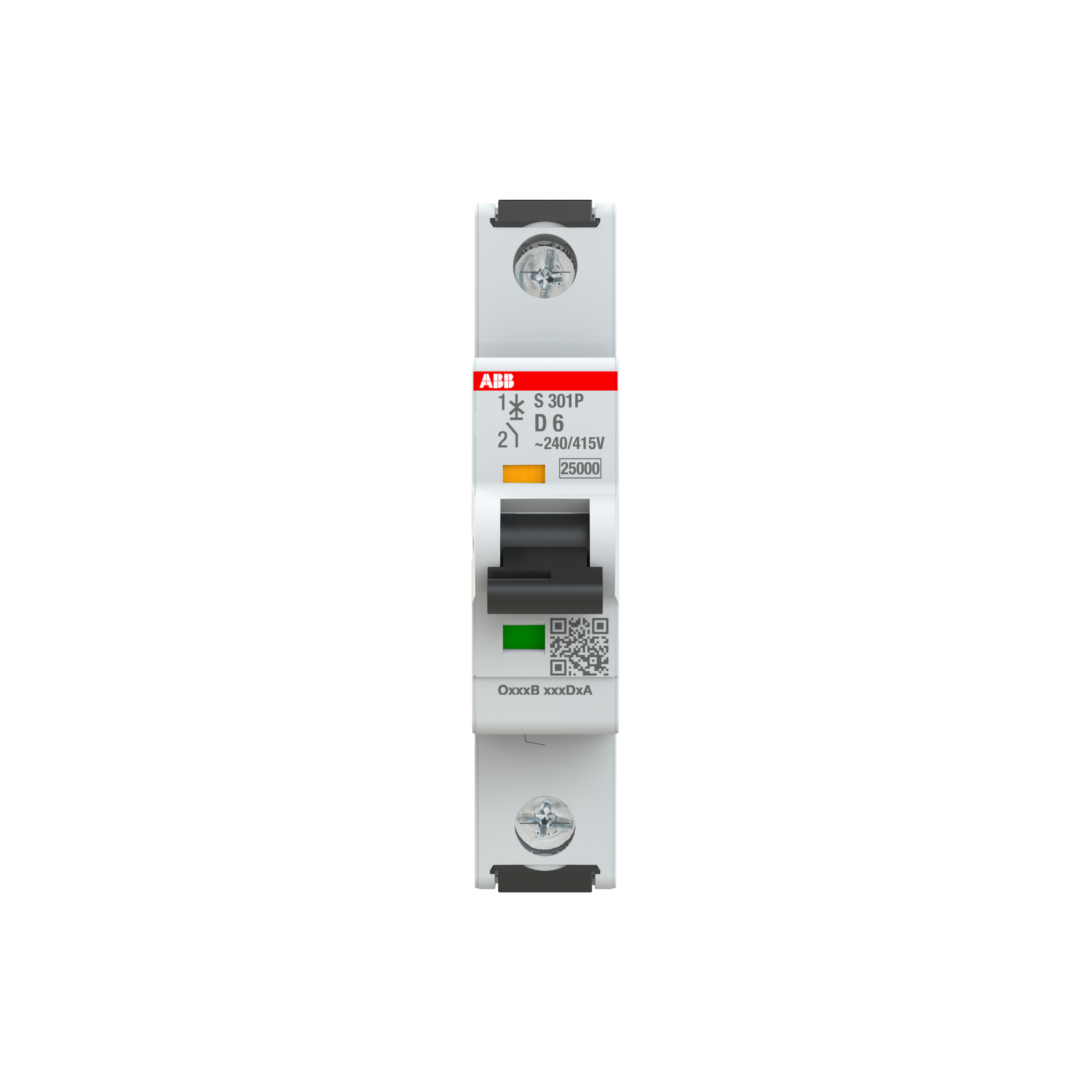

<p>The S300P Series MCB is a robust and reliable Miniature Circuit Breaker designed for industrial and commercial applications. With a rated current of 6 A, it ensures efficient protection against overloads and short circuits in electrical systems. This MCB is engineered to handle a rated voltage of 240 VAC, making it suitable for various electrical networks.</p><p>One of the standout features of this MCB is its high breaking capacity of 15 kA, providing ample protection even in demanding environments. It also boasts an impressive rated impulse withstand voltage of 6 kV and a rated insulation voltage of 500 V, ensuring safety under transient conditions.</p><p>Designed with practicality in mind, the S300P Series MCB supports easy installation on DIN rails with its compact dimensions—17.5 mm wide, 88 mm high, and 67.6 mm deep—and lightweight construction at just 0.124 kg. The screw clamp terminals facilitate secure connections with a tightening torque specification of 2.8 N-m.</p><p>In terms of durability, this MCB offers electrical endurance up to 20,000 cycles at frequencies ranging from 50 to 60 Hz, showcasing its long-term reliability in daily operations. Its curve type D characteristic makes it ideal for protecting circuits with inductive loads where higher inrush currents are expected.</p><p>The device features dual degrees of protection: IP20 when installed within an enclosure or IP40 when mounted externally without additional enclosures—providing flexibility based on application needs. Additionally, the degree of pollution rating at IP3 indicates suitability for moderately polluted environments.</p><p>Compliance with international standards such as CSA C22.2 No.235, IEC/EN60898-1, IEC/EN60947-2, and UL1077 guarantees that this circuit breaker meets rigorous safety and performance benchmarks globally recognized across industries.</p><p>Operating efficiently across a broad ambient temperature range from -40&#176;C to +70&#176;C further enhances its adaptability to diverse climatic conditions found throughout Australia’s varied landscapes—from hot outback regions to cooler coastal areas.</p><p>The housing color RAL7039 grey provides an aesthetically neutral appearance suitable for integration into existing setups without visual disruption while maintaining consistent power supply connection regardless due arbitrary mounting position options available during installation phases requiring no specific orientation constraints whatsoever!</p><p>Overall if you&#39;re seeking dependable circuit protection solution backed by solid engineering credentials then look no further than our versatile yet straightforward offering here today courtesy latest advancements embedded within every unit produced proudly representing pinnacle quality assurance standards upheld consistently over time delivering peace mind customers alike!</p>
