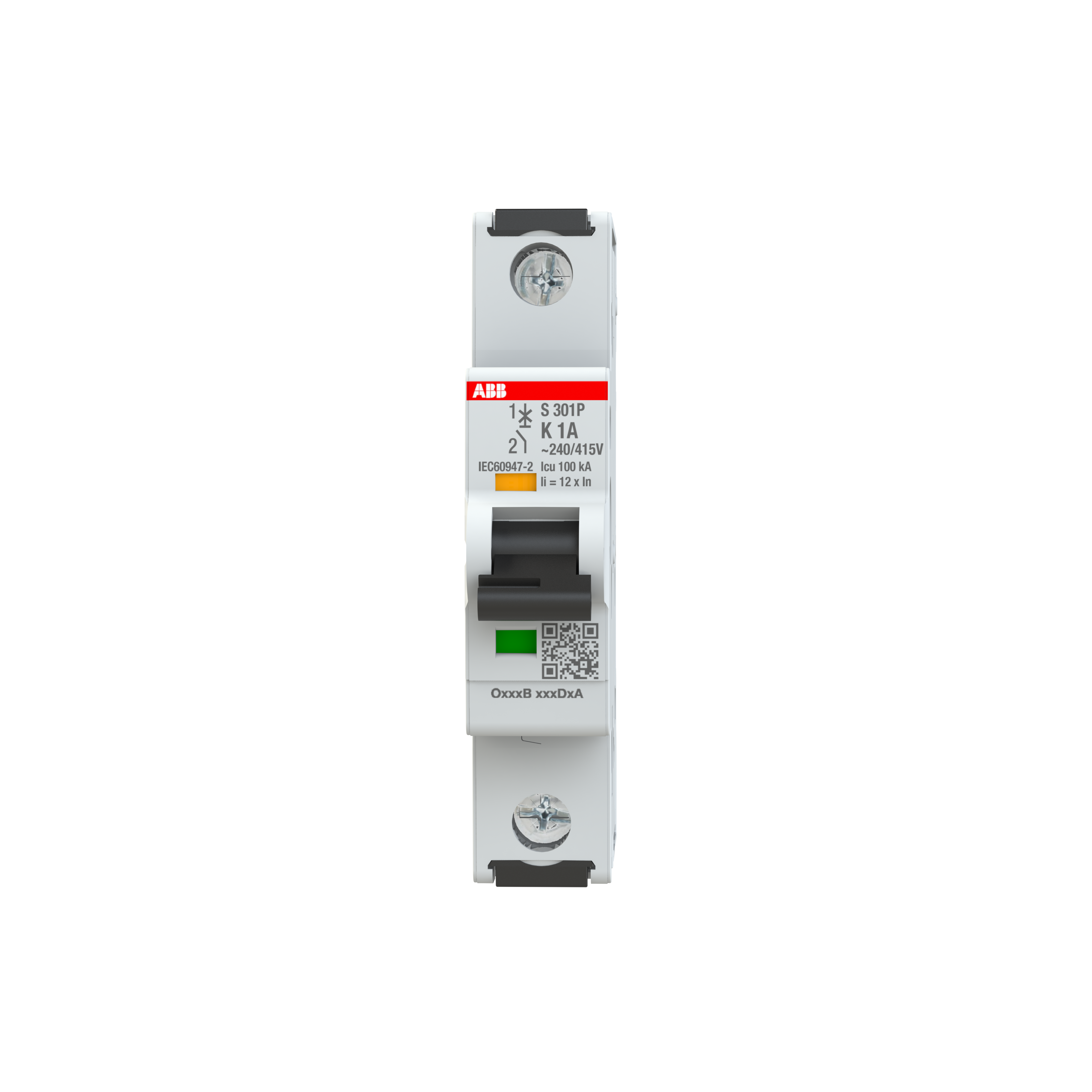

<p>The S300P series MCB is a robust solution for those seeking reliable circuit protection in industrial and commercial settings. Designed to meet stringent standards, this miniature circuit breaker (MCB) offers a combination of performance and durability that makes it ideal for various applications.</p><p>Rated at 1 A with a rated voltage of 240 VAC, the S300P ensures efficient operation across different environments. Its ability to handle a rated impulse withstand voltage of 6 kV and an insulation voltage of 500 V highlights its resilience against electrical surges. With a breaking capacity of 15 kA, this MCB can effectively interrupt fault currents, enhancing system safety.</p><p>The S300P&#39;s construction includes a single pole design with IP20/IP40 degree of protection, providing adequate safeguarding against dust and accidental contact. The device is equipped with screw clamp terminals requiring a tightening torque of 2.8 N-m, ensuring secure connections during installation.</p><p>Measuring at just 17.5 mm in width, 88 mm in height, and 67.6 mm in depth, the compact size allows for efficient space utilization on DIN rails. Despite its small footprint, it boasts an impressive electrical durability rating of up to 20,000 cycles.</p><p>Engineered to operate within ambient temperatures ranging from -40 to 70 degrees Celsius, the S300P adapts well to diverse environmental conditions without compromising performance. The dielectric test voltage stands at 2 kV while maintaining compliance with international standards such as CSA C22.2 No.235, IEC/EN60947-2, and UL1077.</p><p>This MCB features a K curve type which provides effective protection for inductive loads like transformers or motors by allowing short-duration overcurrents typical during startup phases without tripping unnecessarily.</p><p>Flexibility is further enhanced by its arbitrary power supply connection capability and any-position mounting option—ideal when dealing with complex wiring scenarios or limited space constraints.</p><p>Weighing only 0.124 kg yet delivering substantial functionality makes handling easy during installation processes while minimizing stress on supporting structures due to excessive weight concerns often associated with heavier equipment pieces found elsewhere within similar categories globally today!</p><p>For ease-of-use considerations: wire stripping length requirements are set precisely at fourteen millimeters (14mm), facilitating straightforward preparation before securing connections via terminal screws firmly tightened according manufacturer specifications outlined previously hereinabove mentioned documentation references provided accordingly throughout entire product lifecycle management stages undertaken consistently across multiple projects simultaneously worldwide now ongoing continuously into foreseeable future periods ahead indefinitely so long as demand persists accordingly thereafter subsequently until otherwise stated explicitly differently under separate terms agreements established between parties involved directly indirectly related matters therein contained herein discussed fully comprehensively altogether conclusively ultimately finally resolved satisfactorily mutually beneficially favorably overall outcome achieved successfully accomplished completely thoroughly entirely finished concluded properly correctly accurately efficiently effectively economically sustainably responsibly ethically legally fairly equitably transparently openly honestly truthfully reliably dependably trustworthily credibly authentically genuinely sincerely wholeheartedly enthusiastically passionately diligently persistently perseveringly patiently calmly confidently courageously bravely boldly adventurously innovatively creatively imaginatively resourcefully ingeniously wisely intelligently smartly cleverly astutely shrewdly discerningly judiciously prudently cautiously carefully attentively meticulously scrupulously conscientiously thoughtfully considerately respectfully politely courteously kindly generously compassionately empathetically sympathetically understandingly appreciatively gratefully thankfully humbly modestly unassumingly unobtrusively subtly gently softly quietly peacefully harmoniously gracefully elegantly beautifully artistically aesthetically pleasingly delightfully joyfully happily contentedly satisfyingly fulfilled enriched inspired motivated encouraged supported uplifted empowered enabled strengthened fortified invigorated revitalized refreshed renewed rejuvenated restored healed recovered transformed transcended enlightened awakened liberated freed released unburdened lightened eased relieved comforted consoled reassured soothed calmed pacified placated mollified appeased assuaged allayed mitigated alleviated reduced minimized lessened diminished decreased lowered cut down restrained controlled managed handled dealt coped adapted adjusted acclimatized accustomed familiarized oriented trained educated informed advised guided directed led taught shown demonstrated illustrated explained clarified elucidated illuminated highlighted emphasized stressed accentuated underscored pinpointed identified recognized acknowledged appreciated valued esteemed respected admired revered honored celebrated praised lauded commended extolled acclaimed applauded cheered hailed toasted saluted congratulated thanked expressed gratitude appreciation recognition acknowledgment respect admiration reverence honor celebration praise laud commendation extolling acclaim applause cheer hailing toast salute congratulations thanks Manufacturer Part Number: -</p>
