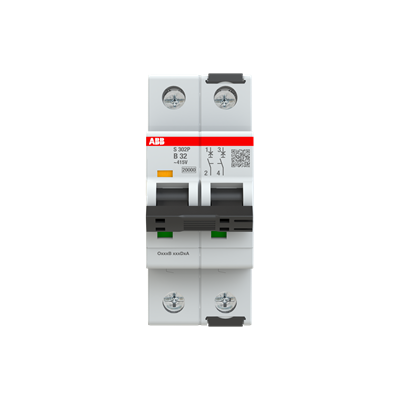

<p>The S300P series Miniature Circuit Breaker (MCB) is designed for those who demand reliability and efficiency in their electrical systems. This robust device offers a rated current of 32 A, making it suitable for various industrial and commercial applications. With a rated voltage of 415 VAC and a rated insulation voltage of 500 V, this MCB ensures safe operation under demanding conditions.</p><p>Built to withstand high impulse voltages, the MCB features a rated impulse withstand voltage of 6 kV. Its breaking capacity stands at an impressive 15 kA, while the short circuit capacity reaches up to 20 kA, providing excellent protection against overloads and short circuits.</p><p>The S300P series MCB is equipped with two poles and has been tested for electrical durability up to 10,000 cycles. It operates efficiently within a frequency range of 50/60 Hz. The product&#39;s curve type B ensures precise tripping characteristics suitable for protecting cables and sensitive equipment.</p><p>For installation flexibility, the MCB can be mounted on any DIN Rail position with arbitrary power supply connections. The screw clamp terminal type allows secure connections with a tightening torque of 2.8 N-m, accommodating wire stripping lengths up to 14 mm.</p><p>In terms of physical dimensions, this compact unit measures just 35 mm in width, standing at a height of 88 mm and depth of 69 mm—ideal for space-constrained environments. Despite its solid build quality, it maintains a lightweight profile at only 0.248 kg.</p><p>Safety standards are paramount; thus this MCB complies with CSA Standard C22.2 No.235, IEC/EN standards such as IEC/EN60898-1 and IEC/EN60947-2 as well as UL1077 approval ensuring adherence to international safety norms.</p><p>The degree of protection ranges from IP20/IP40 depending on installation requirements or enclosure designs while maintaining an ambient operating temperature between -40&#176;C to +70&#176;C which highlights its versatility across different climates or operational settings including harsh Australian conditions where temperature fluctuations may occur frequently</p><p>Its housing comes in RAL7039 grey colour that blends seamlessly into most electrical panels without compromising aesthetics or functionality</p><p>This versatile component also boasts dielectric test voltage rating set at two kilovolts further enhancing system integrity during fault conditions by isolating faults quickly minimizing potential damage downstream components </p><p>If pollution levels concern you rest assured knowing our product meets IP3 degree pollution standard keeping performance optimal even dusty environments often found industry settings today </p><p>With these specifications combined together make sure consider adding reliable partner your next project needs whether upgrading existing infrastructure designing new installations from scratch Manufacturer Part Number: S300P</p>
