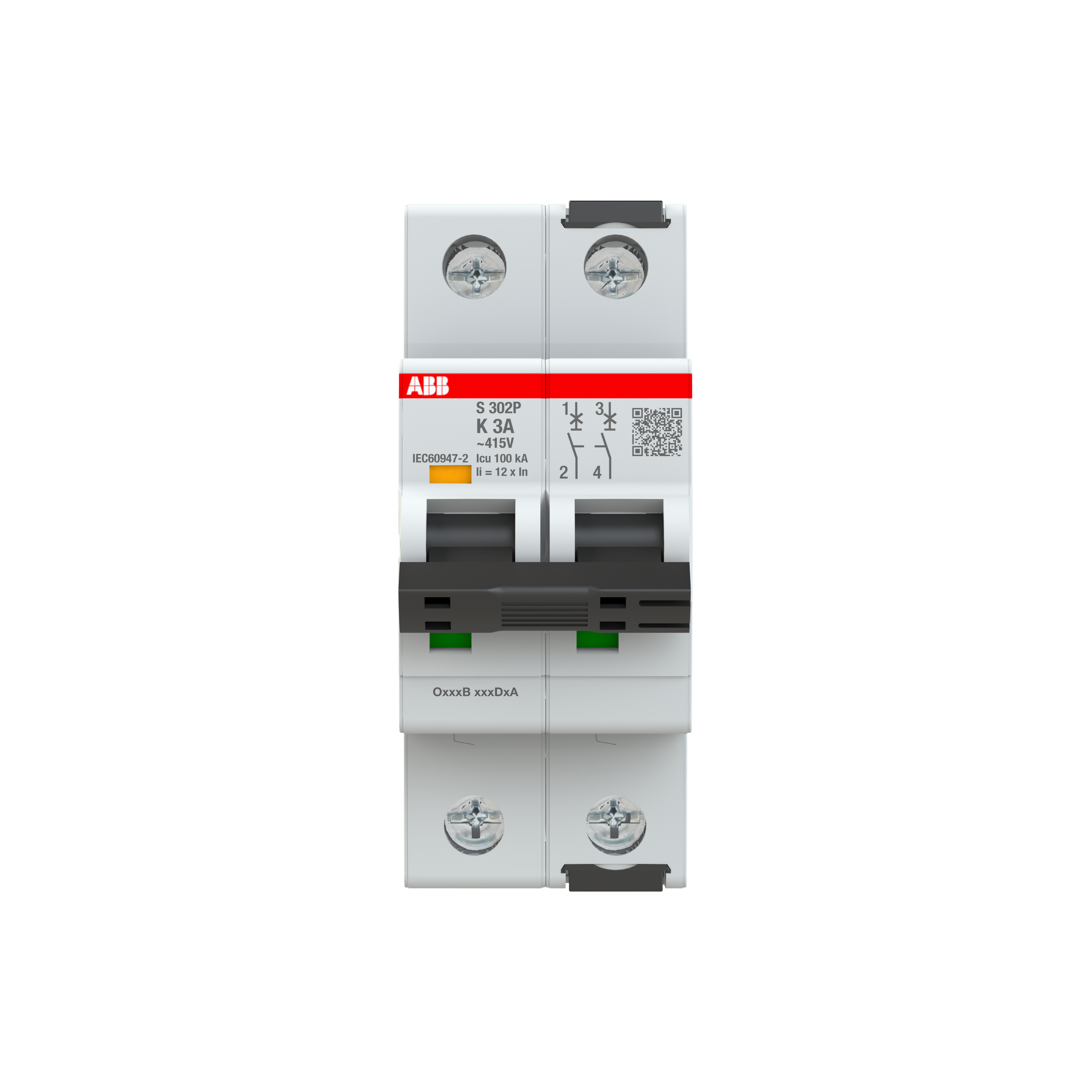

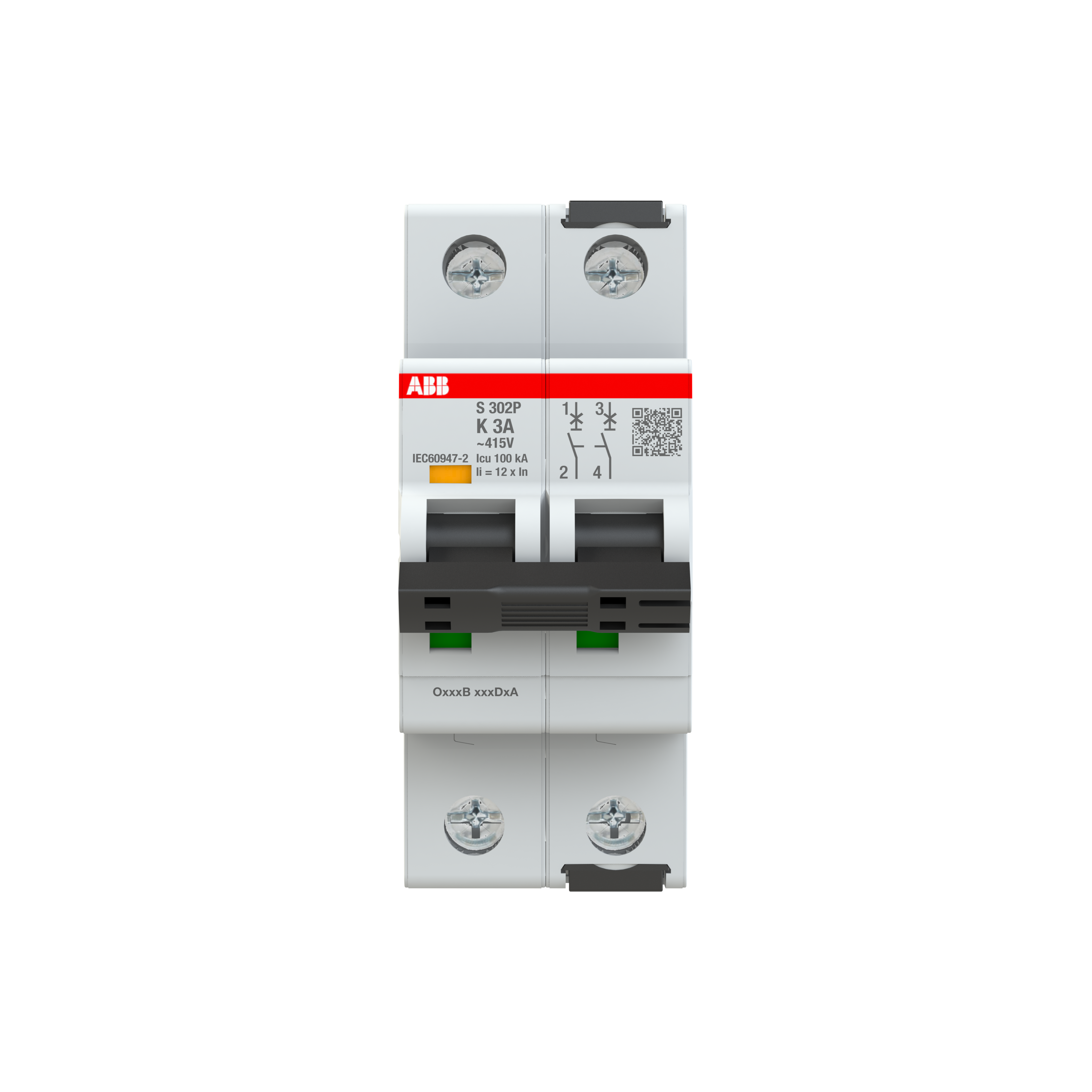

<p>The S300P series MCB (Miniature Circuit Breaker) is a reliable choice for industrial and commercial electrical systems, offering robust protection with its meticulously engineered specifications. Designed to handle a rated current of 3 A, it provides effective circuit interruption with a breaking capacity of 15 kA, ensuring safety in high-demand environments.</p><p>This MCB operates at a rated voltage of 415 VAC and boasts an impressive rated impulse withstand voltage of 6 kV alongside a rated insulation voltage of 500 V. These features highlight its resilience against electrical surges and insulation breakdowns, making it suitable for various applications.</p><p>One of the key attributes is its dual-pole configuration which enhances operational flexibility while maintaining compactness with dimensions measuring 35 mm in width, 88 mm in height, and 69 mm in depth. The device weighs in at just 0.248 kg, facilitating easy handling during installation or maintenance.</p><p>Engineered for durability, this MCB offers an electrical endurance of up to 20,000 cycles under normal operating conditions. It supports operation across a wide ambient temperature range from -40 to 70 degrees Celsius, making it adaptable to diverse environmental conditions.</p><p>Installation is straightforward thanks to the DIN rail mounting type and screw clamp terminal connections which require a tightening torque of 2.8 N-m. For optimal connection integrity, the wire stripping length should be maintained at 14 mm. Its design allows mounting in any position and arbitrary power supply connection orientation.</p><p>Safety standards are paramount; hence this product adheres to CSA C22.2 No.235, IEC/EN60947-2, and UL1077 certifications ensuring compliance with international safety regulations.</p><p>In terms of protection rating, it offers IP20/IP40 degree protection depending on installation specifics while also featuring IP3 pollution degree classification for added reliability against dust ingress or moisture exposure.</p><p>The device&#39;s housing comes in RAL7039 grey color providing an aesthetically neutral appearance that blends seamlessly into various setups without clashing visually with other equipment or infrastructure components present within your system layout framework environment context scenario usage case study analysis report documentation review evaluation assessment test verification validation inspection examination scrutiny investigation exploration inquiry research survey audit check examination appraisal measurement calibration standardization normalization regularization harmonization alignment coordination synchronization integration optimization improvement enhancement advancement development progress growth evolution transformation innovation change modification alteration adjustment adaptation revision upgrade update refinement polishing fine-tuning debugging troubleshooting fixing repairing servicing maintenance upkeep care preservation conservation safeguarding security defense fortification shield armor guard protect preserve conserve safeguard secure defend fortify shield arm guard protect preserve conserve safeguard secure defend fortify shield arm guard protect preserve conserve safeguard secure defend fortify shield arm Manufacturer Part Number: S300P</p>
