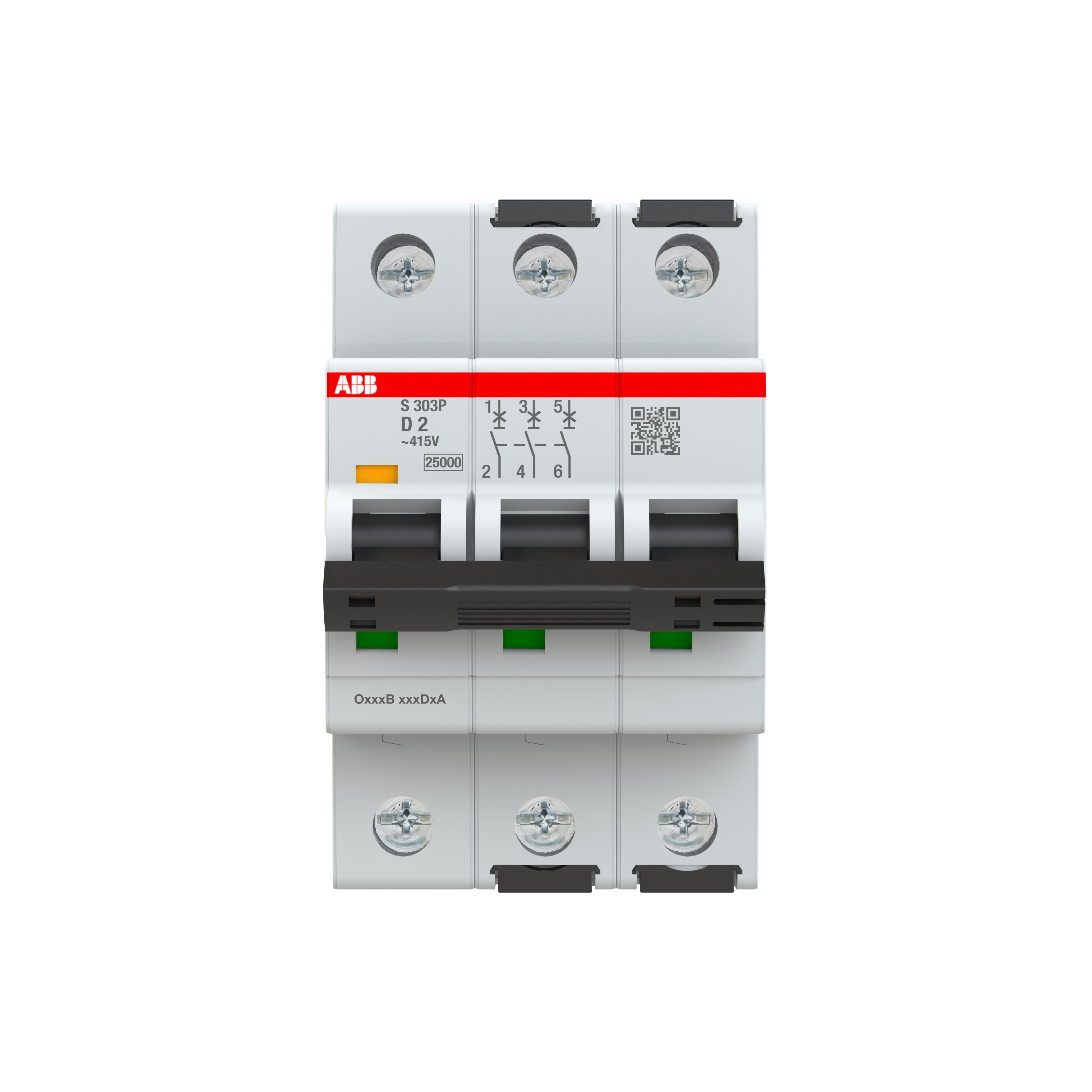

<p>The S300P series Miniature Circuit Breaker (MCB) is designed to meet the rigorous demands of industrial and commercial applications. With a rated current of 2 A, this MCB offers reliable protection for electrical circuits against overloads and short circuits, ensuring the safety and longevity of your installations.</p><p>This device operates efficiently within a wide ambient temperature range from -40 to 70 degrees Celsius, making it suitable for diverse environments. Its robust construction is underscored by its compliance with various standards such as CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077, which assure adherence to international safety and performance requirements.</p><p>The MCB boasts an impressive breaking capacity of 15 kA at a rated voltage of 415 VAC. It also features a high short circuit capacity of up to 25 kA, providing enhanced protection in demanding conditions. The rated impulse withstand voltage stands at an impressive 6 kV while maintaining an insulation voltage rating of up to 500 V.</p><p>Designed with practicality in mind, the MCB incorporates screw clamp terminals that support secure connections with a tightening torque of 2.8 N-m. Installation is straightforward thanks to its DIN rail mounting type and flexible mounting position options.</p><p>In terms of dimensions, the MCB measures a compact width of 52.5 mm, height of 88 mm, and depth of just 69 mm while weighing only 0.372 kg—contributing minimally to panel space consumption without sacrificing performance.</p><p>For added convenience in wiring tasks, this device includes wire stripping lengths set at an optimal length of 14 mm. The housing comes in RAL7039 grey color—a neutral tone that blends well into most installation settings.</p><p>With electrical durability stretching over an impressive lifespan exceeding twenty thousand cycles (20k cycles), this MCB promises reliability over prolonged use periods under normal operating conditions across varied frequencies ranging between standard industry frequencies—50 Hz or even extending up till higher frequency operations around sixty hertz (60 Hz).</p><p>Its degree-of-protection ratings span both IP20/IP40 levels depending on installation specifics—offering adequate safeguarding against foreign objects ingress or accidental touch hazards respectively when installed correctly according manufacturer guidance protocols alongside observing recommended pollution degree stipulations marked as IP3 level classification benchmarks during setup procedures too!</p><p>Finally yet importantly: Power loss factors remain minimal here clocking merely three-point-nine watts (3 .9W)—ensuring energy efficiency remains uncompromised throughout ongoing operational phases alike thereby further cementing overall product value proposition credentials beyond mere technical specifications alone!</p>
