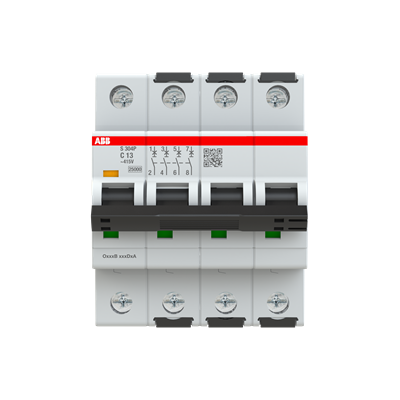

<p>The S300P series MCB is a robust solution for industrial and commercial electrical protection needs. Engineered with precision, this Miniature Circuit Breaker (MCB) offers a reliable performance that meets various technical requirements.</p><p>With a rated current of 13 A, the MCB efficiently handles electrical loads while ensuring safety and reliability. It operates within a voltage range of up to 415 VAC, making it suitable for diverse applications in both industrial and commercial settings. The device boasts a rated impulse withstand voltage of 6 kV and an insulation voltage of 500 V, providing excellent protection against overvoltage conditions.</p><p>Designed for durability, the MCB features an impressive breaking capacity of 15 kA and can handle short circuit capacities up to 25 kA. This makes it ideal for environments where high fault currents are expected. The unit&#39;s electrical durability is rated at 20,000 cycles, ensuring longevity even under frequent operation.</p><p>The S300P series MCB adheres to international standards including CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications. These approvals underscore its compliance with rigorous safety and performance benchmarks.</p><p>Installation flexibility is another hallmark of this product. The MCB supports DIN rail mounting in any position with an arbitrary power supply connection orientation. Its compact dimensions—70 mm width by 88 mm height by 69 mm depth—and lightweight design at just under half a kilogram facilitate easy integration into existing systems without compromising space or efficiency.</p><p>User-friendly terminal connections are ensured through screw clamp terminals requiring a tightening torque of just 2.8 N-m and accommodating wire stripping lengths of up to 14 mm. The device’s housing in RAL 7039 grey provides an aesthetically pleasing finish while maintaining functional integrity across ambient temperatures ranging from -40&#176;C to +70&#176;C.</p><p>Protection-wise, the MCB offers dual degrees: IP20/IP40 for environmental resilience against dust ingress and accidental contact with live parts when installed in enclosures meeting specified criteria; additionally categorized under degree of pollution IP3 which indicates its suitability for most indoor installations.</p><p>This circuit breaker also features Curve Type C characteristics suited for general-purpose applications involving moderate startup currents such as those found in lighting circuits or small motor loads operating on standard frequencies between either50 Hz or60 Hz respectively</p><p>Optimized power loss management stands out too – recorded at only5 .2 W during operation thus contributing towards energy efficiency within your system setup</p><p>In summary , whether you’re safeguarding sensitive machinery or managing complex distribution networks , trust this mid-cycle marvel from our trusted lineup : Manufacturer Part Number: [not provided].</p>
