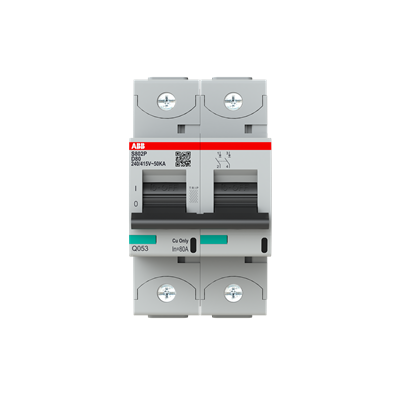

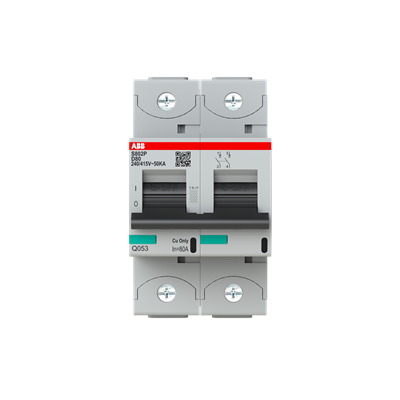

<p>The S800P Series MCB (Miniature Circuit Breaker) is engineered to deliver robust protection and performance in industrial and commercial settings. This two-pole device is designed for applications requiring reliable circuit interruption, with a rated current of 80 A. It stands out with its impressive breaking capacity of 50 kA, ensuring safety and efficiency even under high fault conditions.</p><p>Operating within a voltage range of 400/690 VAC, the S800P provides versatility across various electrical systems. Its rated insulation voltage of 690 V and impulse withstand voltage of 6 kV offer superior protection against transient over-voltages, making it suitable for demanding environments.</p><p>The MCB adheres to international standards IEC/EN 60947-2 and UL 1077, underscoring its compliance with rigorous safety and performance criteria. With an IP20 degree of protection, it safeguards against accidental contact with live parts while maintaining operational integrity.</p><p>Designed for ease of use, the S800P mounts conveniently on a DIN Rail system. The compact dimensions—54 mm width by 95 mm height by 82.5 mm depth—allow for efficient space management in control panels. Weighing just 0.49 kg, it combines lightweight construction with durability.</p><p>For optimal connection flexibility, the breaker accommodates wire sizes from 1-50 sq-mm flexible or up to 70 sq-mm rigid conductors. The recommended wire stripping length is set at a precise 19 mm for secure installations. A tightening torque of 3.5 N-m ensures firm connections without compromising structural stability.</p><p>This unit operates effectively across a temperature range from -25 to +60 degrees Celsius, providing reliable functionality in diverse climatic conditions typical within Australia’s varied landscapes.</p><p>In terms of energy efficiency, the MCB features a power loss rating of just 12.8 W—a testament to its design aimed at minimizing energy waste while maximizing performance output.</p><p>The MCB&#39;s D curve characteristic makes it particularly suited for applications involving high inrush currents typically associated with motor loads or transformers.</p><p>Overall, the S800P Series MCB offers an exceptional balance between technical specifications and practical usability—ideal for professionals seeking dependable circuit protection solutions tailored to meet stringent industrial requirements efficiently.</p>
