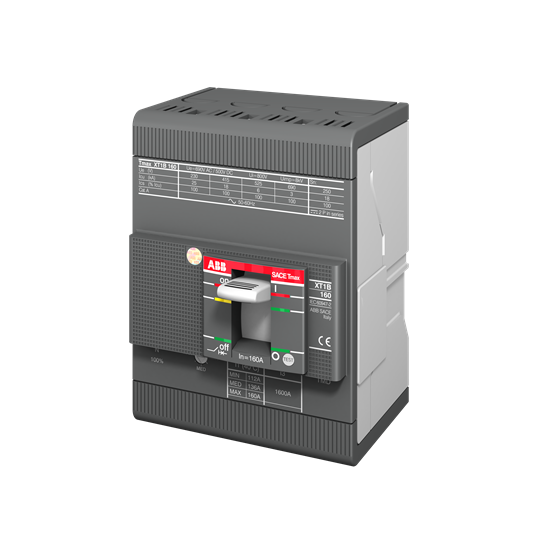

<p>When selecting the right Molded Case Circuit Breaker (MCCB) for your industrial or commercial needs, understanding its specifications is crucial. This MCCB offers a robust and reliable solution with its comprehensive features tailored to meet demanding electrical environments.</p><p>The MCCB operates at a rated current of 160 A, making it suitable for various applications where medium-level current protection is required. It stands out with a rated impulse withstand voltage of 8 kV and an insulation voltage of 800 V, ensuring safety and resilience against electrical surges. The device supports both AC and DC systems with rated voltages of up to 690 VAC and 500 VDC respectively, providing versatility in different power setups.</p><p>Equipped with a thermal-magnetic (TM) release type and a TMD trip unit, this MCCB ensures precise protection by combining thermal overload protection with magnetic short-circuit protection. Its breaking capacity is notable at 25 kA, offering effective interruption of fault currents to safeguard connected equipment.</p><p>Designed as a four-pole device, it accommodates balanced load distribution across phases. The connection type is front-facing, facilitating straightforward installation in panels or enclosures. With an IP20 degree of protection, it’s suited for indoor environments where additional enclosure might not be necessary but still offers basic protection against solid objects larger than 12 mm.</p><p>The terminal type utilizes bolts which provide secure connections capable of handling significant mechanical stress without compromising performance. This MCCB&#39;s width measures at 101.6 mm—compact enough for space-constrained installations yet substantial enough to handle its operational demands efficiently.</p><p>Compliant with IEC60947-2 standards and approvals, this product meets international quality benchmarks ensuring reliability in operation. Weighing in at just 1.4 kg makes it relatively lightweight compared to similar devices in its class.</p><p>Its rated frequency range spans from 50 Hz to 60 Hz accommodating standard power grids globally while maintaining consistent performance levels across varying conditions. Compatible for use with XT1C systems adds another layer of adaptability when integrating into existing setups or during upgrades.</p><p>The MCCB also boasts a rated short circuit current capacity of up to 1600 A offering robust defense against potential system failures due to unexpected high-current events providing peace-of-mind operation under challenging circumstances.</p><p>For those concerned about energy efficiency the power loss is limited to just 15 W minimizing unnecessary energy consumption while maintaining optimal functionality over time contributing positively towards overall system efficiency goals whether new installations or retrofits are considered part thereof within broader project scopes alike!</p><p>Finally the current setting range extends from112 A up through160 A allowing flexibility depending upon specific application requirements further enhancing usability across diverse scenarios encountered routinely within industrial contexts today! Additionally main circuit connecting capacity accommodates conductors ranging between45 .5 sq-mm80 sq-mm thus ensuring ample compatibility options exist regardless conductor size utilized therein!</p>
