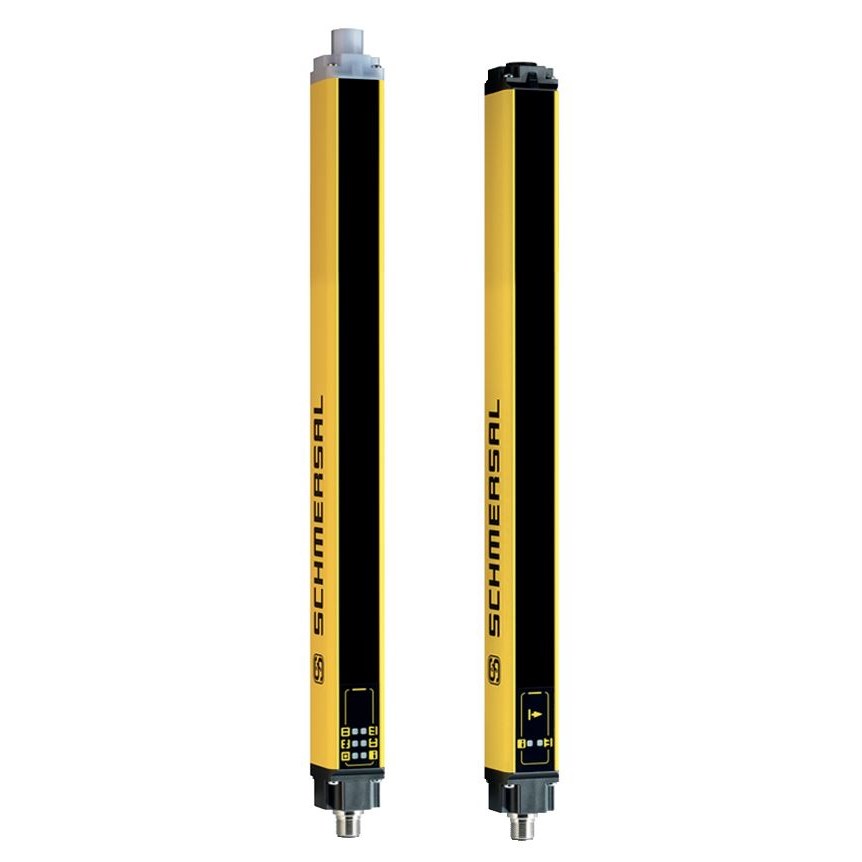

Schmersal 103005395 Safety Light Curtain 24 V 88 Beams

Product Code: 103005395

  • 24V, 0.25A rated for optimal performance
  • Durable IP67 protection rating
  • Aluminium build ensures longevity
  • M12 connector for secure connections
  • TUV and cULus approved standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Light Curtain
Brand SCHMERSAL
Cable Length 100 m
Degree of Protection IP67
Material Aluminium
Number of Beams 88
Operational Temperature -25 to 70 deg C
Protection Field Height 890 mm
Rated Current 0.25 A
Rated Power 10 W
Rated Voltage 24 V
Response Time 20 ms
Standards and Approvals TUV, cULus
Terminal Type M12 Connector
Weight 1680 g

Description

<p>When selecting a reliable and efficient component for industrial or commercial applications, it&amp;#39;s crucial to consider both performance specifications and durability. This product offers a well-rounded set of features that cater to various technical requirements, ensuring it meets the demands of your operations.</p><p>Operating at a rated voltage of 24 V and a current of 0.25 A, this device delivers a consistent power output of 10 W. These specifications make it suitable for numerous applications where moderate power consumption is essential. The cable length extends up to 100 m, providing flexibility in installation without compromising on connectivity or performance.</p><p>Durability is underscored by its robust IP67 degree of protection, which guarantees resistance against dust ingress and water immersion up to one meter depth for short periods. This makes it an excellent choice for environments where exposure to harsh conditions is inevitable.</p><p>The operational temperature range from -25&amp;#176;C to 70&amp;#176;C ensures reliable functionality in diverse climates, whether in the chill of winter or the heat of summer. Such versatility is further supported by compliance with TUV and cULus standards and approvals, offering assurance regarding safety and quality across international markets.</p><p>Weighing in at 1680 g, the unit&amp;#39;s construction utilizes aluminium material known for its strength-to-weight ratio—providing durability while maintaining manageable weight for handling during installation or maintenance.</p><p>Connection integrity is maintained through an M12 connector terminal type, renowned for secure electrical connections even under challenging conditions. With a swift response time of just 20 ms, this product ensures quick adaptation to changes within its operating environment—a crucial factor in maintaining smooth operation within automated systems.</p><p>Additionally, the protection field height measures at 890 mm—adequate coverage that suits various protective needs across different setups.</p><p>In summary, this product combines efficiency with resilience through its comprehensive technical specifications. It stands as a dependable choice for those seeking components that balance performance with endurance across demanding industrial landscapes.</p>
