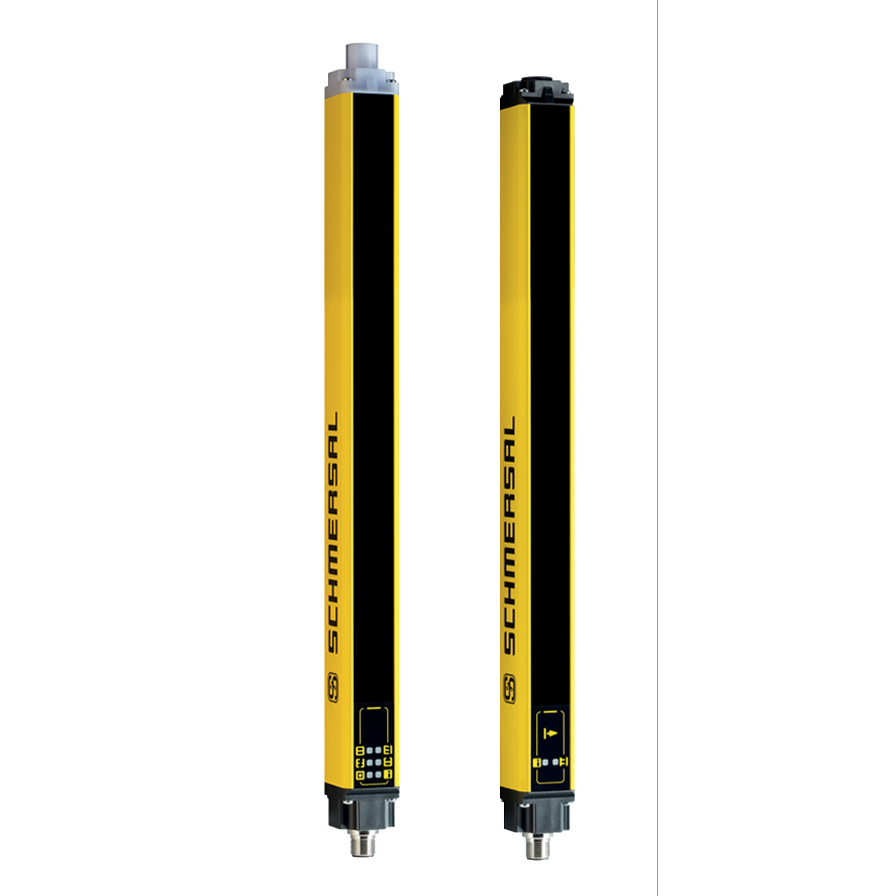

Schmersal 103005407 Safety Light Curtain 24 V 24 Beams

Product Code: 103005407

  • 24V, 0.25A, 10W for efficient performance
  • IP67 rated for robust protection
  • Operates from -25 to 70°C
  • TUV and cULus certified for compliance
  • M12 connector ensures secure connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Light Curtain
Brand SCHMERSAL
Cable Length 100 m
Degree of Protection IP67
Material Aluminium
Number of Beams 24
Operational Temperature -25 to 70 deg C
Protection Field Height 490 mm
Rated Current 0.25 A
Rated Power 10 W
Rated Voltage 24 V
Response Time 10 ms
Standards and Approvals TUV, cULus
Terminal Type M12 Connector
Weight 1080 g

Description

<p>This industrial-grade product is engineered to meet the demands of both commercial and industrial applications, offering a reliable solution for various technical requirements. Operating at a rated voltage of 24 V and a rated current of 0.25 A, it delivers a consistent power output of 10 W, making it suitable for numerous electrical setups.</p><p>Designed with durability in mind, this product features an IP67 degree of protection, ensuring it can withstand harsh environmental conditions including dust and water immersion up to one meter. The operational temperature range from -25&amp;#176;C to 70&amp;#176;C allows for versatile application in diverse climates without compromising performance.</p><p>The inclusion of a robust M12 connector terminal type enhances its connectivity options while maintaining secure connections under demanding conditions. The aluminium construction contributes to its overall lightweight design at just 1080 g, facilitating easier handling and installation without sacrificing strength or resilience.</p><p>With a cable length extending up to 100 meters, this product offers flexibility in installation across large areas or complex layouts. Its response time of just 10 ms ensures quick operation, which is crucial for systems requiring rapid feedback or adjustments.</p><p>Safety and compliance are assured with certifications from TUV and cULus standards and approvals. These endorsements highlight the product&amp;#39;s adherence to international safety regulations, providing peace of mind regarding its reliability and quality assurance.</p><p>Additionally, the protection field height measures at 490 mm, offering ample coverage tailored to specific protective requirements within your system setup.</p><p>In summary, this product stands out as a dependable choice that combines efficiency with robust design elements suitable for challenging environments. Whether you&amp;#39;re upgrading existing infrastructure or embarking on new projects, it&amp;#39;s built to deliver consistent performance aligned with industry standards.</p>
