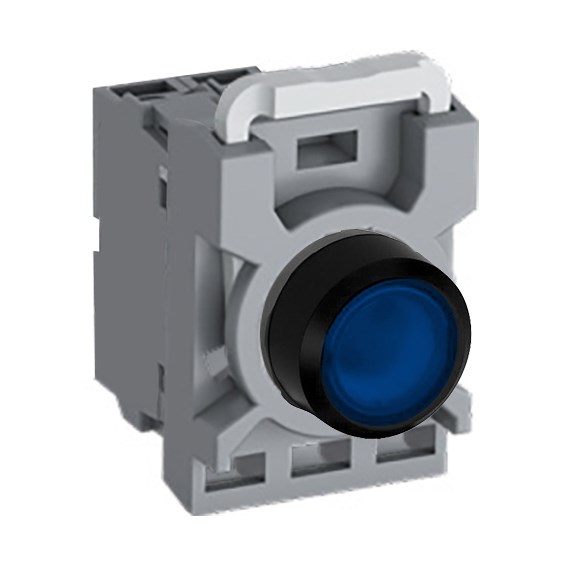

<p>When selecting a pushbutton for industrial or commercial applications, understanding the technical specifications is crucial. This particular pushbutton combines functionality and reliability, making it a suitable choice for various environments.</p><p>Designed to operate at a rated voltage of 12 VAC/DC, this illuminated pushbutton ensures visibility in low-light conditions with its blue LED lamp. The illumination not only enhances usability but also adds an aesthetic touch to control panels. Its flush actuator type provides a sleek interface, minimizing accidental activations while maintaining ease of use.</p><p>The product meets rigorous standards and approvals, including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013 and DIN 40050-9. Additionally, it complies with UL 508 and CSA C22.2 No.14 certifications. These endorsements assure users of its safety and performance across different regions.</p><p>With an IP66 degree of protection on the front side and IP20 at the terminal level, this pushbutton is well-suited for harsh environmental conditions where dust and water exposure are concerns. It can withstand ambient temperatures ranging from -25 to 70 degrees Celsius without compromising functionality or durability.</p><p>The contact configuration features a single normally open (1NO) contact type which supports momentary operation—ideal for applications requiring temporary activation such as start/stop functions in machinery or equipment controls.</p><p>Rated with an insulation voltage of up to 690 V and an impulse withstand voltage capability reaching up to 6 kV ensures robustness against electrical surges providing peace-of-mind during operations involving high-power circuits while maintaining safety protocols effectively upheld by these ratings further enhanced alongside its impressive thermal current handling capacity maxing out at around ten amperes (10 A).</p><p>Constructed using durable plastic bezel material coupled together seamlessly within standard cutout dimensions measuring precisely twenty-two millimeters (22 mm), installation becomes straightforward thanks largely due part included components like operator mechanisms along integrated contact block holders plus additional LED blocks bundled altogether inside one complete package ready-made solution addressing diverse user needs efficiently managed under practical scenarios encountered daily basis working environments alike everywhere globally today!</p>
