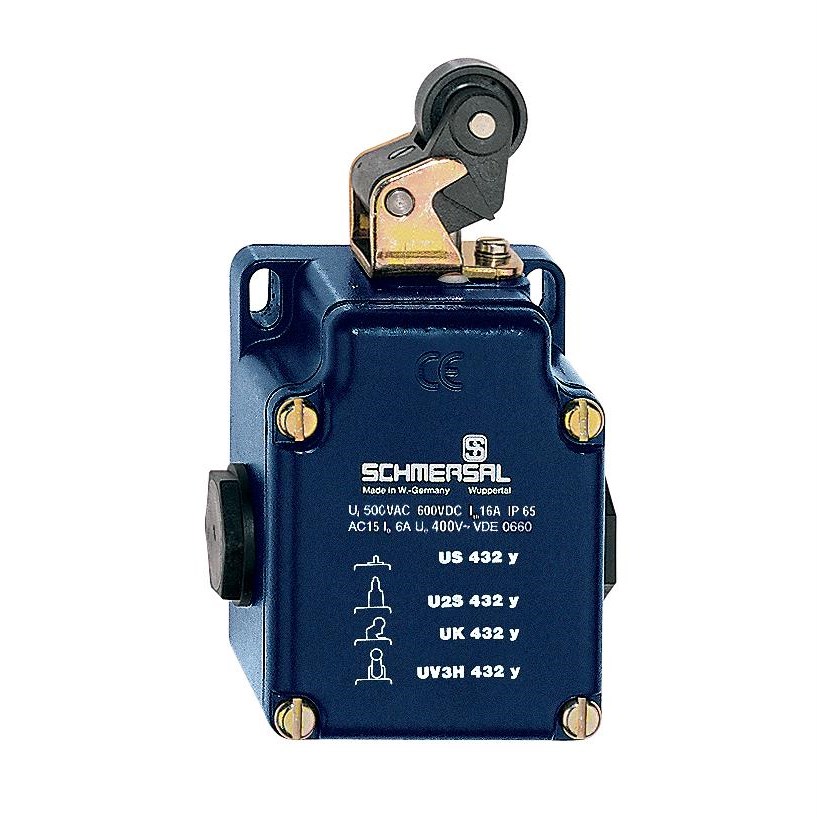

Schmersal 101055024 Position Switch Offset Roller Lever 1NO-1NC Die Cast Light Alloy Silver Contact

Product Code: 101055024

  • Rated current of 16 A
  • Durable die cast light alloy housing
  • IP65 protection for harsh environments
  • Complies with ENIEC 60947-5-1 standards
  • Offset roller lever actuator type
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Position Switch
Brand SCHMERSAL
Actuating Element Offset Roller Lever
Actuating Speed 1 mm/min
Actuator Type Offset Roller Lever
Cable Cross Section 1.5 sq-mm
Contact Configuration 1NO+1NC
Contact Material Silver
Contact Opening (2) 1.5 mm
Degree of Protection IP65
Enclosure Coating Material Painted
Fuse Rating 16 A gG D-Fuse
Housing Material Die Cast Light Alloy
Mechanical Life 10000000 Operations
Rated Current 16 A
Standards and Approvals ENIEC 60947-5-1
Switching Type Slow Action

Description

<p>Introducing a reliable solution for your industrial and commercial switching needs, this device is designed to meet the rigorous demands of various applications. Built with precision, it offers a rated current of 16 A, ensuring optimal performance in diverse environments.</p><p>The housing material is crafted from die-cast light alloy, providing both durability and lightweight properties. This robust construction is complemented by an IP65 degree of protection, safeguarding the device against dust and water ingress, making it suitable for challenging conditions.</p><p>Conforming to EN IEC 60947-5-1 standards and approvals, this product guarantees compliance with international safety and quality benchmarks. The contact configuration features a 1NO+1NC setup, offering versatility in control circuits.</p><p>Designed with slow action switching type and equipped with an offset roller lever actuator type, the device ensures precise operation even at an actuating speed as low as 1 mm/min. This aspect makes it ideal for applications requiring meticulous control over mechanical movements.</p><p>The contacts are made from silver, chosen for its excellent conductivity and resistance to corrosion. For added protection in electrical circuits, the fuse rating stands at 16 A gG D-Fuse. This ensures that the system remains safeguarded against potential overloads or short circuits.</p><p>With a cable cross-section capacity of 1.5 sq-mm, installation flexibility is enhanced while maintaining efficient current flow through the system. The contact opening measures two points at 1.5 mm each, allowing for reliable separation during operation cycles.</p><p>One of the standout features is its impressive mechanical life span of up to 10 million operations. This longevity translates into reduced maintenance costs and increased uptime for your systems—an essential factor when considering total cost ownership over time.</p><p>In summary, this product combines reliability with efficiency underpinned by strong technical specifications suited for demanding industrial tasks where precision cannot be compromised upon lightly due diligence should always include checking these specs against specific project requirements before proceeding further but rest assured knowing you have here what could very well prove indispensable asset within any given operational framework seeking such capabilities today tomorrow alike!</p>
