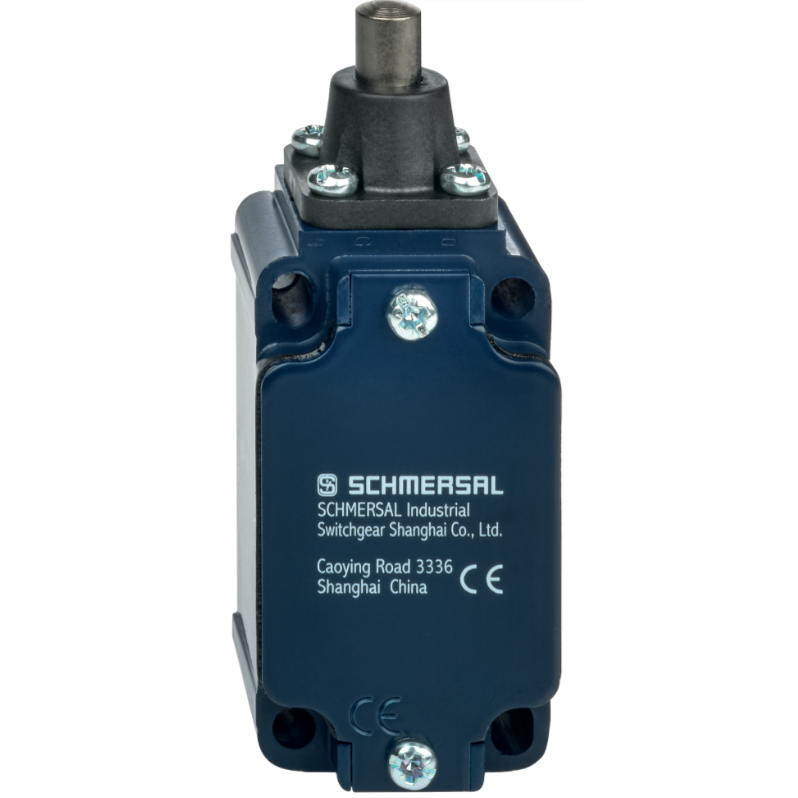

Schmersal 151166484 Plunger Limit Switch Plunger Plastic Glass Fibre Reinforced Thermoplastic Silver Contact

Product Code: 151166484

  • Rated for 10A current
  • Durable glass fibre reinforced thermoplastic housing
  • IP65/IP67 protection against dust and water
  • Snap action switching for quick response
  • Silver contact material ensures reliable performance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Plunger Limit Switch
Brand SCHMERSAL
Actuating Element Plunger
Actuating Speed 0.5 m/s
Connector Type Side B: Female
Contact Material Silver
Degree of Protection IP65, IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 30000000 Operations
Number of Auxiliary Contacts 1
Rated Current 10 A
Standards and Approvals BG-GS-ET-15 EN ISO 13849-1 EN IEC 60947-5-1
Switching Type Snap Action
Terminal Type M20 x 1.5 Screw

Description

<p>In the world of industrial and commercial applications, choosing the right components is crucial for ensuring optimal performance and safety. This switch, designed with precision engineering, offers a robust solution tailored to meet demanding environments. </p><p>With a rated current of 10 A, this switch is built to handle substantial electrical loads efficiently. The housing material combines plastic with glass fibre reinforced thermoplastic, providing durability while maintaining lightweight characteristics. This combination ensures that the switch can withstand harsh conditions without compromising on structural integrity.</p><p>The device boasts an impressive degree of protection with IP65 and IP67 ratings. This means it is dust-tight and protected against water ingress from powerful jets or temporary immersion, making it suitable for various challenging settings where moisture or particulate matter could be a concern.</p><p>Adhering to rigorous standards such as BG-GS-ET-15, EN ISO 13849-1, and EN IEC 60947-5-1 guarantees its compliance with international safety and quality benchmarks. These certifications ensure that the switch meets stringent requirements for reliability in automation systems.</p><p>Equipped with one auxiliary contact, this switch provides additional flexibility in control circuits by allowing secondary functions to be integrated seamlessly into your system setup. Its snap action switching type delivers precise operation at an actuating speed of 0.5 m/s—ideal for applications requiring rapid response times.</p><p>The contact material used is silver which offers excellent conductivity and resistance to tarnishing over time—a critical factor in maintaining consistent performance under varying electrical loads.</p><p>Installation is straightforward thanks to the M20 x 1.5 screw terminal type that ensures secure connections while facilitating quick maintenance when needed.</p><p>A notable feature of this product is its remarkable mechanical life span—rated at 30 million operations—which translates into long-term reliability even under frequent use conditions typical in industrial environments.</p><p>In summary, this switch stands out as a reliable component due to its robust construction materials innovative design features adherence to high safety standards versatile auxiliary contacts efficient snap action mechanism superior contact material choice easy installation process via screw terminals along with exceptional mechanical longevity making it an ideal fit for those seeking dependable solutions in their technical projects.</p>
