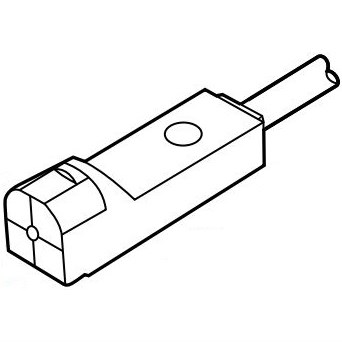

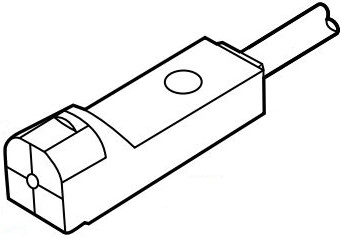

Panasonic GX-H8A-P Rectangular Inductive Proximity Sensor NO PNP-Output 1m L Cable

Product Code: GX-H8A-P

  • Sensing range of 0-2.1 mm
  • Operates on 12-24 VDC, <15 mA
  • Durable PBT housing material
  • IP68/IP68G protection rating
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rectangular Inductive Proximity Sensor
Brand PANASONIC
Cable Length 1 m
Cable Type 3-core oil, heat and cold resistant cabtyre cable
Degree of Protection IP68, IP68G
Housing Material PBT
Humidity 35-95%
Insulation Resistance 50 MOhm
Operation Indicator Orange LED ON
Operational Temperature -40 to 85 deg C
Rated Current <15 mA
Rated Voltage 12-24 VDC
Relative Humidity 35 to 95%
Sensing Range 0-2.1 mm
Sensor Type Top Sensing
Shock Resistance 10000 ms
Utilisation Category DC-12 or DC-13
Weight 20 g

Description

<p>When it comes to precision and reliability in industrial automation, the Proximity Sensor stands out as a dependable choice for professionals seeking efficiency and accuracy. Designed with practicality in mind, this sensor offers a sensing range of 0-2.1 mm, making it suitable for applications that require close proximity detection.</p><p>Operating within a rated voltage of 12-24 VDC and consuming less than 15 mA of current, this sensor ensures energy efficiency while maintaining optimal performance. The robust housing made from PBT (Polybutylene Terephthalate) provides excellent durability and resistance to environmental factors, ensuring longevity even in challenging conditions.</p><p>One of the key features is its impressive degree of protection rated at IP68 and IP68G. This means the sensor is dust-tight and can withstand immersion in water beyond one meter, offering peace of mind when used in environments where moisture or debris are concerns.</p><p>The operational temperature range is another highlight, as it performs reliably between -40 to 85 degrees Celsius. Whether you’re facing extreme cold or intense heat, this sensor maintains its functionality without compromise. Additionally, with humidity tolerance ranging from 35% to 95%, it&amp;#39;s versatile enough for various climates and settings.</p><p>Weighing just 20 grams, this lightweight device doesn’t sacrifice strength or resilience; its shock resistance is rated up to an impressive 10,000 ms. This makes it ideal for dynamic environments where vibrations or impacts might be frequent.</p><p>Installation flexibility is enhanced by a cable length of one meter which allows convenient placement within your system setup. The insulation resistance measures at an effective 50 MOhm ensuring safety against electrical disturbances.</p><p>For ease of operation monitoring, an orange LED indicator lights up when the sensor is active—an intuitive feature that simplifies status checks during routine maintenance or troubleshooting tasks.</p><p>Whether you&amp;#39;re upgrading existing systems or deploying new solutions in industrial settings such as manufacturing plants or commercial facilities requiring precise object detection capabilities—the Proximity Sensor delivers consistent performance backed by solid engineering principles tailored for professional use cases.</p>
