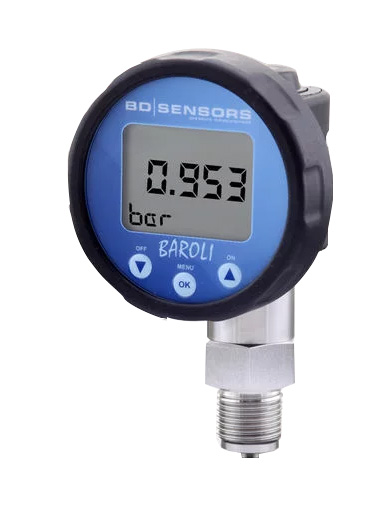

BD Sensors M004001050K0N001121000 Battery Powered Digital Pressure Gauge 316L Stainless Steel

Product Code: M004001050K0N001121000

  • Rated Voltage: 3.6 V
  • High accuracy: <=+/-0.25% FSO BFSL
  • Durable 316L stainless steel housing
  • IP65 protection for harsh environments
  • Wide temp range: -40 to 125°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Battery Powered Digital Pressure Gauge
Brand BD SENSORS
Accuracy <=+/-0.25% FSO BFSL
Degree of Protection IP65
Diaphragm Material Ceramic Al2O3 96%
Housing Material 316L Stainless Steel
Mechanical Connection 1/2 in NPT
Mechanical Life 10000000 Operations
Operational Temperature -40 to 125 deg C
Rated Voltage 3.6 V
Seal Material FKM
Standards and Approvals CE, cULus, REACH, RoHS
Vibration Resistance 25-2000 Hz

Description

<p>When it comes to industrial and commercial applications, the right equipment can make all the difference. If you&amp;#39;re in search of a reliable and precise sensor, this product offers a host of features designed to meet demanding technical requirements.</p><p>At its core, this sensor operates with a rated voltage of 3.6 V, ensuring efficient performance across various applications. Its accuracy is impressive, maintaining readings within +/-0.25% FSO BFSL, which makes it suitable for tasks requiring high precision.</p><p>Constructed with durability in mind, the housing is made from 316L stainless steel. This material choice not only provides excellent corrosion resistance but also ensures longevity even under harsh conditions. Coupled with an IP65 degree of protection, this sensor is well-guarded against dust ingress and low-pressure water jets from any direction—a critical factor for outdoor or challenging environments.</p><p>The operational temperature range extends from -40 to 125 degrees Celsius, making it versatile enough to handle extreme temperatures without compromising performance. This feature is particularly beneficial for industries that experience significant temperature fluctuations.</p><p>In terms of compliance and safety standards, this product meets CE, cULus, REACH, and RoHS approvals. These certifications underscore its commitment to quality and environmental responsibility—an essential consideration when selecting components for your projects.</p><p>Vibration resistance between 25-2000 Hz further enhances the robustness of this sensor by safeguarding against potential damage caused by mechanical vibrations often encountered in industrial settings.</p><p>The mechanical life span reaches up to 10 million operations; hence you can expect long-term reliability without frequent replacements or maintenance interruptions.</p><p>For those concerned about installation compatibility, the mechanical connection uses a standard 1/2 inch NPT fitting which simplifies integration into existing systems or new setups alike.</p><p>Internally speaking—the diaphragm crafted from Ceramic Al2O3 (96%) delivers superior stability while resisting wear over time due largely due thanks its inherent hardness properties compared other materials available market today alongside seal made FKM known their chemical thermal resilience helping maintain integrity under diverse conditions</p><p>Overall—this combination attributes positions device ideal choice professionals seeking dependable performance robust construction across wide array industrial commercial applications</p>
