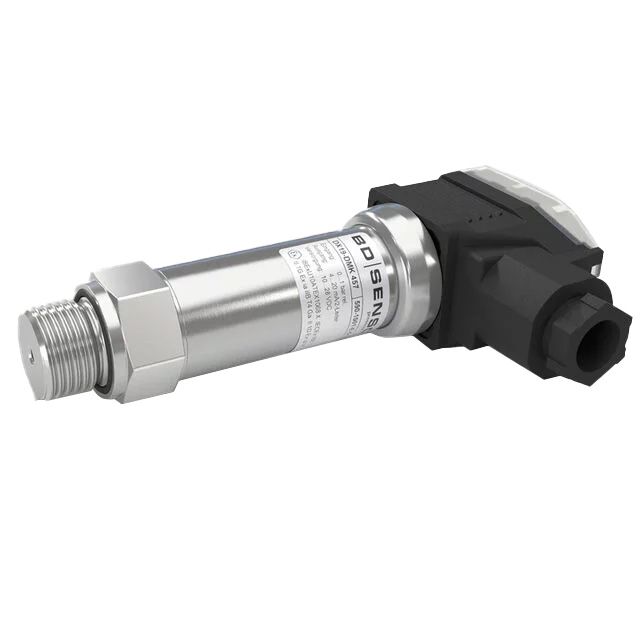

BD Sensors 590250215G10300112000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 590250215G10300112000

  • High accuracy: 0.5% FSO
  • Wide temp range: -40 to 125°C
  • Fast response time: <10 ms
  • Durable ceramic diaphragm
  • Meets ABS, CE, IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMK 457
Accuracy 0.5% FSO
Application Drives, Compressors, Boiler, Pneumatic Control Systems and Oxygen Applications.
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability 4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 25 bar
Response Time < 10 ms
Seal Material FKM
Standards and Approvals ABS, CE, IEC, REACH, RoHS
Version Standard

Description

<p>The DMK 457 Ceramic Sensor is a robust and reliable component designed for industrial and commercial applications, where precision and durability are paramount. This sensor stands out with its impressive accuracy of 0.5% Full Scale Output (FSO), ensuring precise readings that can enhance the efficiency of various operations.</p><p>Operating efficiently in a wide temperature range from -40 to 125 degrees Celsius, the DMK 457 is suitable for diverse environments, making it versatile across different industries. Its ability to withstand pressures up to 25 bar further highlights its capability in demanding conditions.</p><p>The sensor&amp;#39;s construction includes a ceramic diaphragm made of Al2O3 at 96%, offering excellent resistance against wear and chemical corrosion. This makes it ideal for use in harsh settings where longevity and reliability are critical. Complementing this is the FKM seal material, known for its resilience against heat and chemicals, providing an additional layer of protection.</p><p>For connectivity, the DMK 457 features both male and female ISO 4400 electrical plugs, enhancing compatibility with existing systems. The mechanical connection adheres to G1/4 inch DIN 3852 standards, ensuring secure integration into your setup.</p><p>With an outstanding mechanical life rated at ten million operations, this sensor promises long-term performance without frequent replacements or maintenance interruptions. Its quick response time of less than 10 milliseconds ensures real-time data acquisition, crucial for applications requiring immediate feedback.</p><p>Adhering to numerous standards such as ABS, CE, IEC, REACH, and RoHS certifications underscores its compliance with international safety and environmental regulations. These approvals assure users of a product that meets rigorous quality benchmarks while also being environmentally responsible.</p><p>Overall, the DMK 457 Ceramic Sensor offers a blend of precision engineering and robust design tailored for those who demand reliability in their pressure sensing equipment. Whether you&amp;#39;re working within manufacturing processes or environmental monitoring systems, this sensor delivers consistent performance backed by trusted industry standards.</p>
