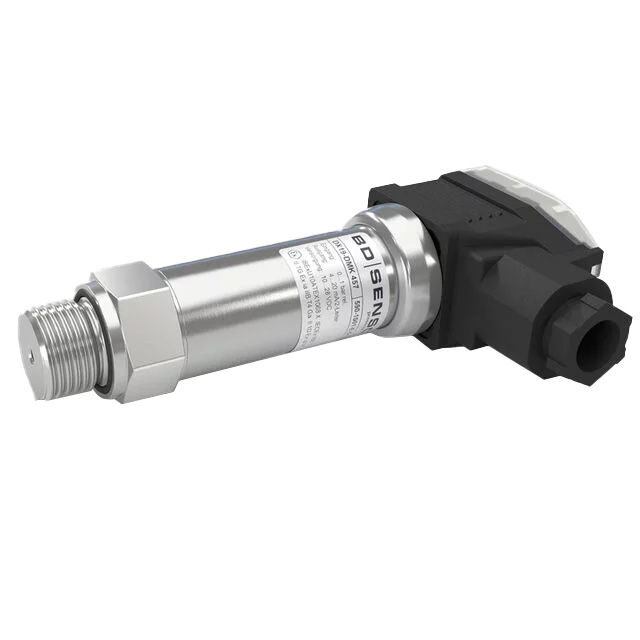

BD Sensors 590400115G10300112000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 590400115G10300112000

  • Ceramic sensor with 4-20 mA output
  • High accuracy at 0.5% FSO
  • Wide temp range: -40 to 125°C
  • Rated pressure up to 4 bar
  • Durable with 10M operations lifespan
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMK 457
Accuracy 0.5% FSO
Application Drives, Compressors, Boiler, Pneumatic Control Systems and Oxygen Applications.
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability 4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 4 bar
Response Time < 10 ms
Seal Material FKM
Standards and Approvals ABS, CE, IEC, REACH, RoHS
Version Standard

Description

<p>The DMK 457 Ceramic Sensor is a reliable choice for professionals in the industrial and commercial sectors seeking precision and durability. This sensor offers an output type of 4-20 mA, making it compatible with a wide range of control systems. Its accuracy stands at 0.5% FSO, ensuring precise readings crucial for maintaining operational efficiency.</p><p>Designed to withstand harsh environments, the DMK 457 operates effectively within a temperature range from -40 to 125 degrees Celsius. This broad operational temperature ensures that it performs reliably across diverse applications, from freezing conditions to high-temperature settings.</p><p>The sensor meets several important standards and approvals including ABS, CE, IEC, REACH, and RoHS. These certifications assure users of its compliance with international safety and environmental regulations—essential factors for industries prioritizing sustainability and safety.</p><p>Durability is a key feature of the DMK 457 with a mechanical life rated at an impressive 10 million operations. This longevity translates into reduced maintenance needs and lower long-term costs for businesses relying on consistent performance over time.</p><p>With a rated pressure capacity of up to 4 bar, this sensor is suitable for various pressure monitoring tasks in different industrial processes. The mechanical connection features a G1/4 inch DIN 3852 fitting which simplifies installation in existing setups while ensuring secure connections.</p><p>Electrical connectivity is facilitated by male and female plug options conforming to ISO 4400 standards. This design not only ensures robust electrical connections but also allows for quick replacements or modifications as needed without significant downtime.</p><p>The response time of less than 10 milliseconds enables rapid data acquisition—a critical factor when real-time monitoring is necessary to prevent system failures or optimize process controls efficiently.</p><p>Constructed with high-quality materials such as Ceramic Al2O3 at a purity level of 96% for the diaphragm material guarantees resistance against wear and tear while maintaining measurement integrity over extended periods. The seal material made from FKM adds another layer of resilience against chemical exposure or harsh environmental conditions often encountered in industrial settings.</p><p>In conclusion, the DMK 457 Ceramic Sensor stands out due to its blend of accuracy, durability, compatibility with industry standards, and robust construction materials—all essential attributes that professionals look for when selecting sensors tailored to meet their technical requirements efficiently without compromising on quality or reliability.</p>
