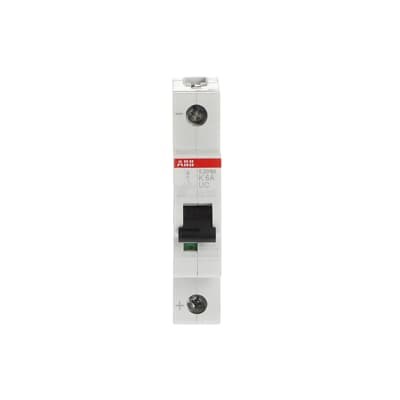

ABB S201MK6UC Miniature Circuit Breaker 10kA at 230VAC 1-P 6A 230/240VAC K-Curve

Product Code: S201MK6UC

  • Rated current of 6 A for reliable protection
  • Breaking capacity of 10 kA at 230 VAC
  • Compact size: 17.5 mm width, 85 mm height
  • Screw clamp terminals with 2.8 N-m torque
  • Complies with IEC/EN 60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Poles 1P
Breaking Capacity (kA) 10 @230 V AC
Current Rating (A) 6
Family S200MUC
AC Voltage (V) 230/240
DC Voltage (V) 220
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Miniature Circuit breaker
Brand ABB
Application Industrial
Breaking Capacity 10 kA at 230 VAC
Collection S200MUC
Curve Type K
Depth 69 mm
Height 85 mm
Housing Colour RAL 7035 Grey
Impulse Voltage 4 kV
Number of Poles 1
Power Loss 1.77 W
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Voltage 230/240 VAC
Short Circuit Capacity 10 kA
Standards and Approvals CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve K Curve
Width 17.5 mm
