Version	Withdrawable
Brand	ABB
EAN	8015644759506
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	42
Breaking Capacity 415V AC - Icu (kA)	42
Current Rating (A)	800
Design of Control Element	Push Button
Earth Fault Protection	Yes
G (0.1 to 1 x In) - I4 (A)	80 - 800
I (1.5 to 15 x In) - I3 (A)	1200 - 12000
Indication	Switched-off Indicator
L (0.4 to 1 x In) - I1 (A)	320 - 800
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	320
Power Loss (W)	100
Rated Current (A)	800
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	1200
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	42
Rated Uninterrupted Current - Iu (A)	800
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	480 - 8000
Size of Frame	E1.2
Trip Unit	Ekip G Hi-touch LSIG
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	3P
Breaking Capacity (kA)	42 @415V AC
Trip Unit - Electronic	Ekip G Hi-touch LSIG
Frame	E1.2
Icw (kA/1s) - Short-time Withstand Current Rating	42
Iu - Uninterrupted Current Rating (A)	800
Component Type	Withdrawable

Air Circuit Breakers

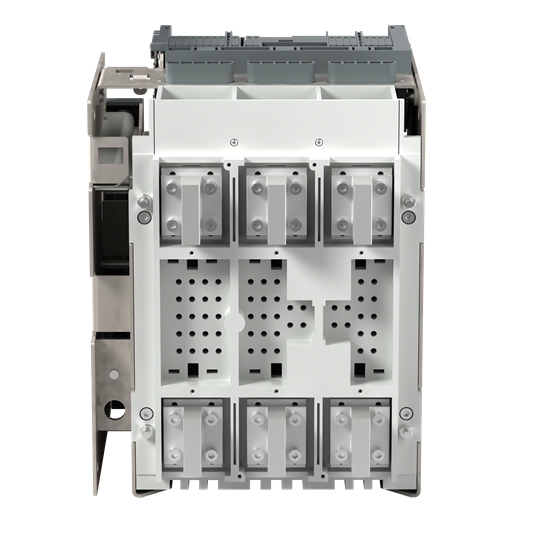

ABB E1.2B 800 EKIP G HI-TOUCH LSIG 3P WMP 1SDA072100R1
