Version	Withdrawable
Brand	ABB
EAN	8015644766368
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Current Rating (A)	1000
Design of Control Element	Push Button
Earth Fault Protection	Yes
G (0.1 to 1 x In) - I4 (A)	100 - 1000
I (1.5 to 15 x In) - I3 (A)	1500 - 15000
Indication	Switched-off Indicator
L (0.4 to 1 x In) - I1 (A)	400 - 1000
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	4
Overload Release Current Setting (A)	400
Power Loss (W)	156
Rated Current (A)	1000
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	1500
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1000
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	600 - 10000
Size of Frame	E1.2
Trip Unit	EKIP Touch LSIG
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	4P
Breaking Capacity (kA)	66 @415V AC
Trip Unit - Electronic	EKIP Touch LSIG
Frame	E1.2
Icw (kA/1s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	1000
Component Type	Withdrawable

Air Circuit Breakers

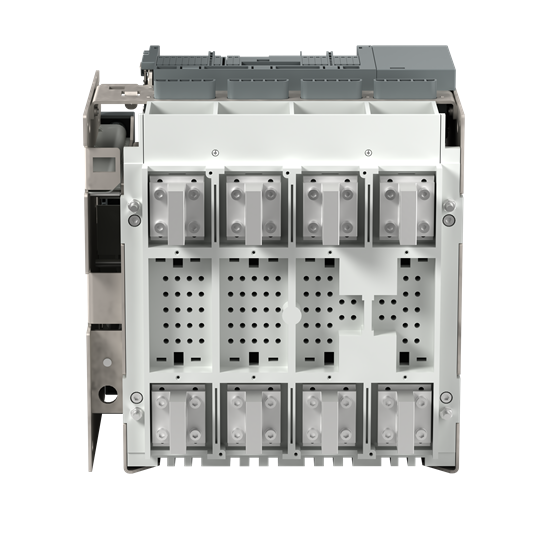

ABB E1.2N 1000 EKIP TOUCH LSIG 4P WMP 1SDA072786R1
