Version	Fixed
Brand	ABB
EAN	8015644754754
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Current Rating (A)	1600
Design of Control Element	Push Button
I (1.5 to 15 x In) - I3 (A)	2400 - 24000
Indication	Switched-off Indicator
L (0.4 to 1 x In) - I1 (A)	640 - 1600
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Back Side
No. of Auxiliary Change-over Contacts	4
No. of Poles	4
Overload Release Current Setting (A)	640
Power Loss (W)	136
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	2400
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	960 - 16000
Terminal Type	HR
Size of Frame	E2.2
Trip Unit	Ekip Touch LSI
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	4P
Breaking Capacity (kA)	66 @415V AC
Trip Unit - Electronic	Ekip Touch LSI
Frame	E2.2
Icw (kA/1s) - Short-time Withstand Current Rating	66
Iu - Uninterrupted Current Rating (A)	1600
Component Type	Fixed

Air Circuit Breakers

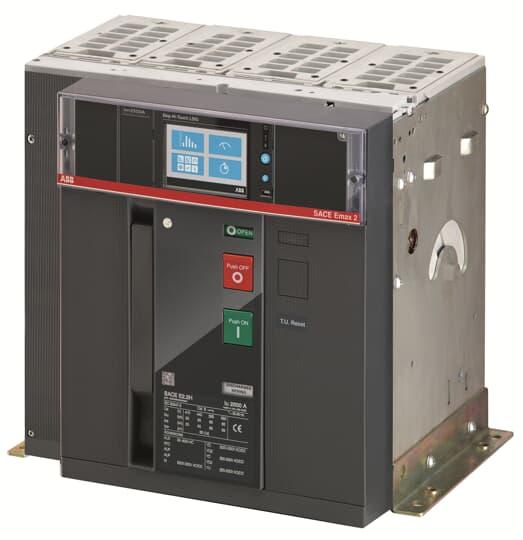

ABB E2.2N 1600 EKIP TOUCH LSI 4P F HR 1SDA071625R1
