Version	Fixed
Brand	ABB
EAN	8015644755164
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Current Rating (A)	2000
Design of Control Element	Push Button
Earth Fault Protection	Yes
G (0.1 to 1 x In) - I4 (A)	200 - 2000
I (1.5 to 15 x In) - I3 (A)	3000 - 30000
Indication	Switched-off Indicator
L (0.4 to 1 x In) - I1 (A)	800 - 2000
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Back Side
No. of Auxiliary Change-over Contacts	4
No. of Poles	4
Overload Release Current Setting (A)	800
Power Loss (W)	212
Rated Current (A)	2000
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	3000
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	2000
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	1200 - 20000
Terminal Type	HR
Size of Frame	E2.2
Trip Unit	EKIP Touch LSIG
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	4P
Breaking Capacity (kA)	66 @415V AC
Trip Unit - Electronic	EKIP Touch LSIG
Frame	E2.2
Icw (kA/1s) - Short-time Withstand Current Rating	66
Iu - Uninterrupted Current Rating (A)	2000
Component Type	Fixed

Air Circuit Breakers

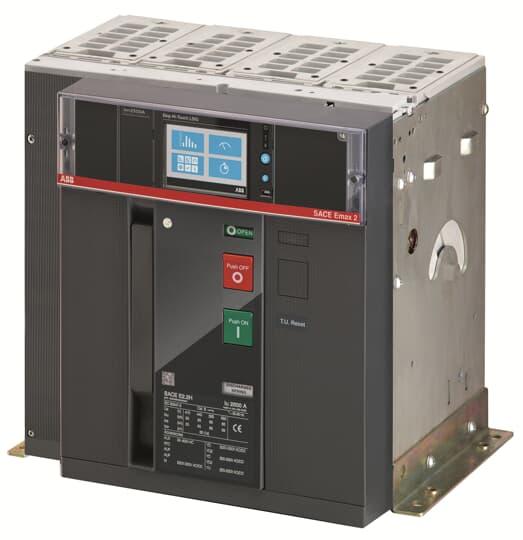

ABB E2.2N 2000 EKIP TOUCH LSIG 4P F HR 1SDA071666R1
