Version	Withdrawable
Brand	ABB
EAN	8015644762674
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Breaking Capacity 415V AC - Icu (kA)	66
Current Rating (A)	2500
Design of Control Element	Push Button
Earth Fault Protection	Yes
G (0.1 to 1 x In) - I4 (A)	250 - 2500
I (1.5 to 15 x In) - I3 (A)	3750 - 37500
Indication	Switched-off Indicator
L (0.4 to 1 x In) - I1 (A)	1000 - 2500
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	1000
Power Loss (W)	550
Rated Current (A)	2500
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	3750
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	2500
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	1500 - 25000
Size of Frame	E2.2
Trip Unit	Ekip G Touch LSIG
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	3P
Breaking Capacity (kA)	66 @415V AC
Trip Unit - Electronic	Ekip G Touch LSIG
Frame	E2.2
Icw (kA/1s) - Short-time Withstand Current Rating	66
Iu - Uninterrupted Current Rating (A)	2500
Component Type	Withdrawable

Air Circuit Breakers

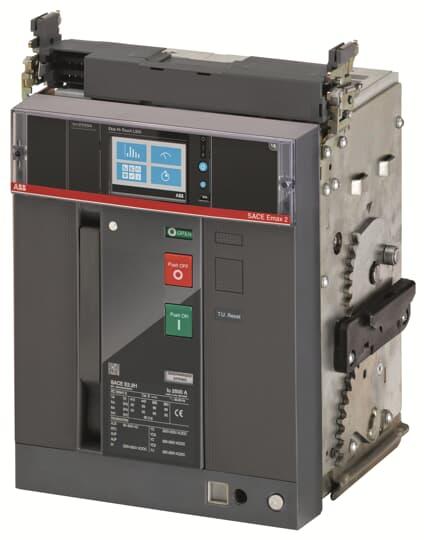

ABB E2.2N 2500 EKIP G TOUCH LSIG 3P WMP 1SDA072417R1
