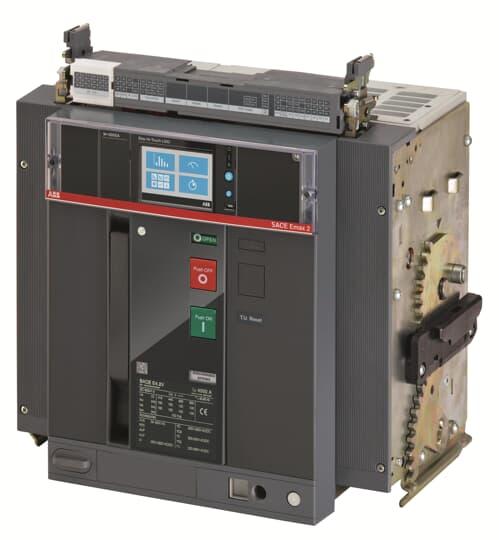

<p>The Automatic Air Circuit Breaker (ACB) with a rated current of 3200 A is an industrial-grade solution designed for robust electrical systems. Its high-rated impulse withstand voltage of 12 kV and insulation voltage of 1000 V make it ideal for demanding environments, ensuring reliable performance even under significant electrical stress.</p><p>Operating at a rated voltage of 690 VAC, this ACB is equipped with an EL release type and utilizes the Ekip Touch LSIG trip unit. This trip unit provides advanced protection features, including long-time, short-time, instantaneous, and ground fault protection—essential for safeguarding your electrical infrastructure from various faults.</p><p>With a power loss of 743 W and a breaking capacity of 85 kA, this circuit breaker efficiently handles substantial current loads while minimizing energy wastage. It has three poles and adheres to the IEC 309 standards and approvals, confirming its compliance with international safety and quality benchmarks.</p><p>The ACB&#39;s physical dimensions are compact yet substantial: measuring 425 mm in both width and height, with a depth of 383 mm. Despite its size, it maintains a degree of protection rated at IP30. This ensures that the device is protected against solid objects greater than 2.5 mm but should be installed in an environment where it isn&#39;t exposed to dust or water ingress beyond this level.</p><p>Weighing in at 60 kg, installation requires careful handling but promises durability once set up correctly within your system architecture. This product is particularly suited for commercial or industrial applications where reliability cannot be compromised.</p><p>In summary, if you&#39;re seeking an automatic circuit breaker that combines high performance with compliance to rigorous standards while offering sophisticated control options through its Ekip Touch LSIG trip unit—this model delivers on all fronts without unnecessary complexity or frills.</p>
