Version	Withdrawable
Brand	ABB
EAN	8015644763565
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	85
Breaking Capacity 415V AC - Icu (kA)	85
Current Rating (A)	3200
Design of Control Element	Push Button
Earth Fault Protection	Yes
G (0.1 to 1 x In) - I4 (A)	320 - 3200
I (1.5 to 15 x In) - I3 (A)	4800 - 48000
Indication	Switched-off Indicator
L (0.4 to 1 x In) - I1 (A)	1280 - 3200
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	1280
Power Loss (W)	743
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	4800
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Uninterrupted Current - Iu (A)	3200
Rated Voltage (V)	690
S (0.6 to 10 x In) - I2 (A)	1920 - 32000
Size of Frame	E4.2
Trip Unit	EKIP Touch LSIG
Degree of Protection	IP30
Standards and Approvals	IEC
Poles	3P
Breaking Capacity (kA)	85 @415V AC
Trip Unit - Electronic	EKIP Touch LSIG
Frame	E4.2
Icw (kA/1s) - Short-time Withstand Current Rating	66
Iu - Uninterrupted Current Rating (A)	3200
Component Type	Withdrawable

Air Circuit Breakers

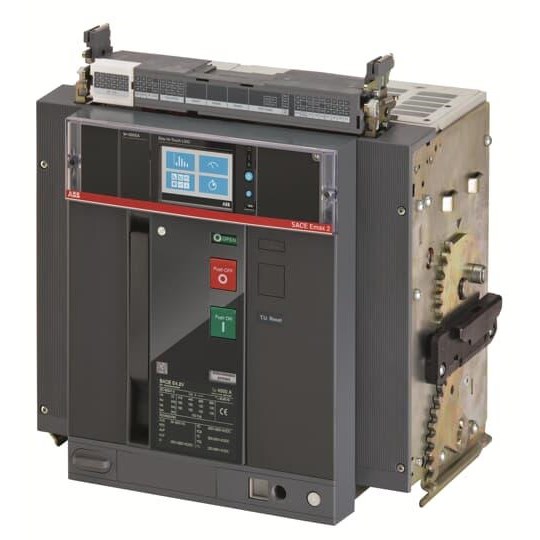

ABB E4.2S 3200 EKIP TOUCH LSIG 3P WMP 1SDA072506R1
