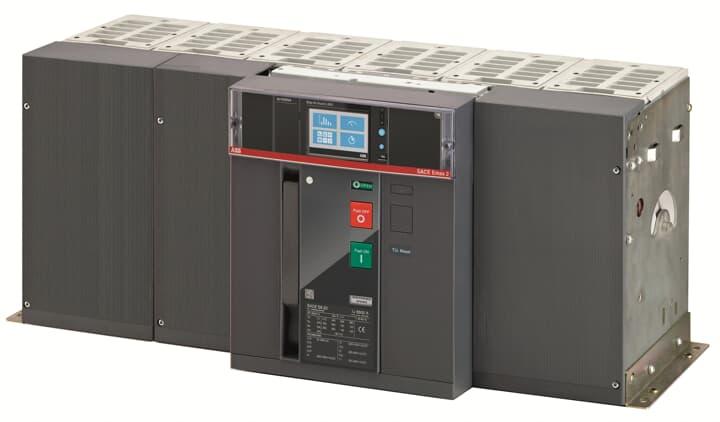

<p>When it comes to selecting an Automatic Air Circuit Breaker (ACB) for industrial and commercial applications, understanding the technical specifications is crucial. This product offers a robust set of features designed to meet demanding electrical requirements.</p><p>The ACB in question is rated for a substantial current of 6300 A, making it suitable for high-capacity installations. With a rated impulse withstand voltage of 12 kV and an insulation voltage of 1000 V, this breaker ensures reliable performance under stress conditions. The rated voltage stands at 690 VAC, aligning with common industrial power systems.</p><p>One noteworthy aspect is its EL release type paired with the Ekip Touch LSIG trip unit, which provides precise protection through advanced electronic sensing and control capabilities. The breaking capacity of 100 kA further underscores its ability to handle significant fault currents without compromising safety or functionality.</p><p>In terms of construction and durability, the breaker boasts an IP30 degree of protection. This indicates solid ingress protection against tools and wires greater than 2.5 mm but does not offer water resistance—an important consideration depending on your installation environment.</p><p>For those concerned about installation specifics, this model features a bolt-type terminal configuration requiring a tightening torque of 70 N-m. Its dimensions are practical for integration into existing systems: a width of 762 mm, height of 371 mm, and depth of 270 mm ensure compatibility with standard electrical panels while maintaining ease-of-access during maintenance or inspection tasks.</p><p>Compliance with IEC standards (specifically IEC 309) guarantees that this ACB meets international safety and performance benchmarks—a critical factor when adhering to regulatory requirements in Australia or globally.</p><p>Weighing in at 109 kg, it&#39;s built to last yet requires careful handling during installation due to its substantial mass. Power loss is measured at 767 W; while this figure might seem significant initially, it reflects the energy dissipation inherent in high-capacity protective devices operating continuously within specified limits.</p><p>Overall, this Automatic ACB combines reliability with advanced functionality suitable for various industrial applications where precision and durability are paramount considerations.</p>
